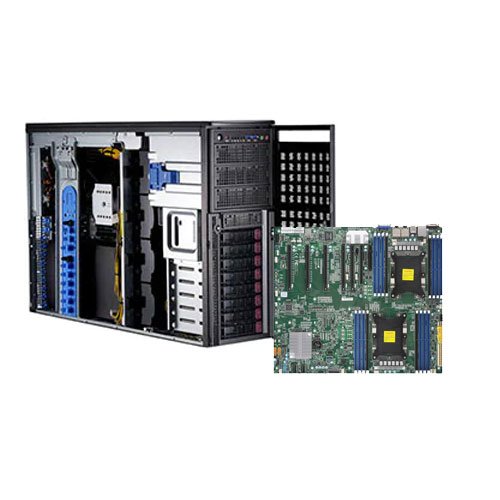

Graphic Server / Workstation 39TRG4D20
Product Overviews:
Offers high-performance PCs that are designed to target Graphic Workstations suitable for AI, VDI and Blockchain.
PRIME ABGB Workstations are purpose-built, quiet, energy-efficient and optimised to increase profitability as well as workflow productivity.
Specification :
| Form Factor | 4U Rackmountable / Tower |
| Chipset | Intel® C621 chipset |
| Processor | Dual Socket P (LGA 3647) |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors | |
| Intel Xeon 5218R Gold 20 core * 2 | |
| Cooling System | 4 Heavy duty fans, 2 Rear exhaust fans |
| 2 Optional Rear fans (required for Passive GPUs) | |
| Memory | 16 DIMMs; up to 4TB 3DS ECC, DDR4-2933MHz† RDIMM/LRDIMM, |
| Supports Intel® Optane™ DCPMM†, 32GB DDR4 2666 *8 | |
| Network Controller | 2x 10GBase-T LAN ports |
| Storage Controller | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Drive Bays | 8 Hot-swap 3.5″ drive bays |
| Optional 4x 2.5″ NVMe supported, 480GB SSD *2 | |
| Expansion Slots | 4 PCI-E 3.0 x16 (double-width) slots, 2 PCI-E 3.0 x16 (single-width) slots |
| 1 PCI-E 3.0 x4 (in x8 slot) | |
| Validated GPU / FPGA | A10/A16/A40/A30/A100/RTXA4000/RTX A5000/RTX A6000/V100/T4/M10 |
| A40 48Gb Graphiccard 4nos | |
| I/O Ports Back | 5 USB 3.0 ports (2 rear, 2 via header, 1 Type A) |
| 4 USB 2.0 ports (2 rear, 2 via headers) | |
| I/O Ports Front | Power On/Off button, System Reset button, 2 Front USB 3.0 Ports |
| System Management | Support for Intelligent Platform Management Interface v.2.0 |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| Chassis Features | Extended ATX (12” x 13”) |
| Power Suppply | 2200W Redundant Power Supplies with PMBus |
| Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | |
| Dimensions (DxWxH) | 673 x 178x 462 (mm) Chassis |
| Estimated Weight | Net Weight: 46 lbs (20.9 kg) |
| Gross Weight: 62 lbs (28.1 kg) | |
| OS Support | Windows Server 2022 |
| Warranty | 3 year |
Terms & Conditions
- Prices is inclusive of taxes
- Freight as per actuals
- Warranty 3 year
- Payment 100% advance
- Delivery time 2-4 weeks
- Price as per Current $ price, will change based on Dollar Fluctuation
- Price Valid for 1 weeks
