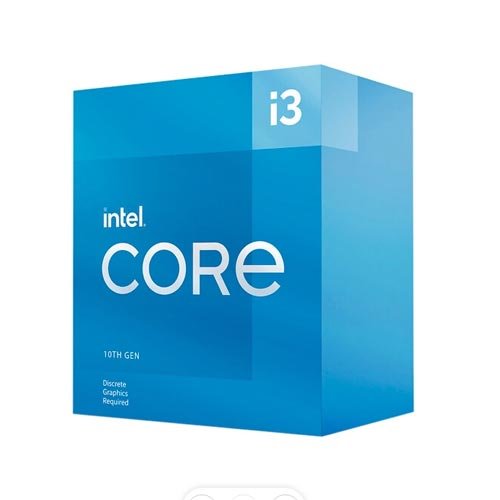

Intel Core i3-10105F 3.7 GHz Quad-Core LGA 1200 Processor BX8070110105F
Overview :
The Core i3-10105F 3.7 GHz Quad-Core LGA 1200 Processor from Intel has a base clock speed of 3.7 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology. With Intel Turbo Boost 2.0, the maximum turbo frequency this processor can achieve is 4.4 GHz. Additionally, this processor features 4 cores with 8 threads in an LGA 1200 socket, has 6MB of cache memory, and 16 PCIe lanes.
Having 4 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core.
This processor also supports 128GB of dual-channel 2666 MHz DDR4 RAM and utilizes 10th-generation technology. A thermal solution is included and protection is provided by a limited 3-year warranty.
Specification :
| General | |
| CPU Model | Intel Core i3-10105F |
| CPU Socket | LGA 1200 |
| Manufacturing Process | 14 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 3.0) |
| Unlocked | No |
| Performance | |
| Number of Cores | 4 |
| Number of Threads | 8 |
| Base Clock Speed | 3.7 GHz |
| Maximum Boost Speed | 4.4 GHz |
| L3 Cache | 6 MB |
| Memory Support | |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2666 MHz |
| ECC Memory | No |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 41.6 GB/s |
| Power | |
| Thermal Design Power (TDP) | 65 W |
| Included Thermal Solution | PCG 2015C |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| Integrated Graphics | |
| Graphics Chipset | None |
| Intel | |
| DMI | DMI3 (8 GT/s) |
| Optane Memory Support | Yes |
| vPro Support | No |
| Performance Technologies | Hyper-Threading, SpeedStep, Turbo Boost 2.0 |
| Security Technologies | Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, OS Guard, Secure Key, Software Guard Extensions |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
| Packaging Info | |
| Package Weight | 0.71 lb |
| Box Dimensions (LxWxH) | 4.7 x 4.6 x 2.8″ |
