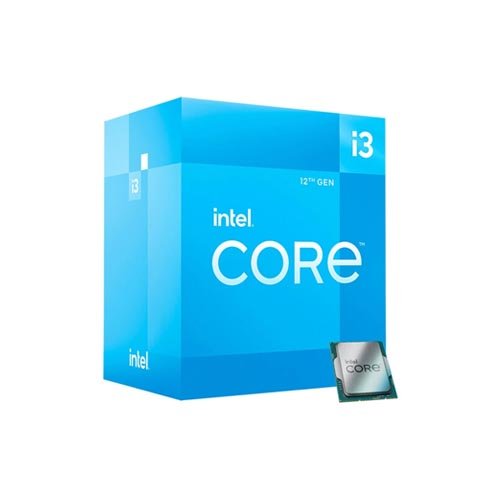

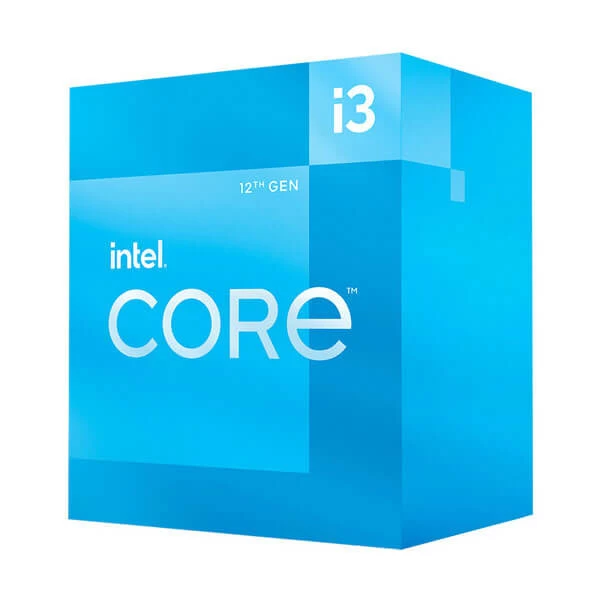

Intel Core i3-12100 12th Gen Alder Lake Quad-Core Desktop Processor BX8071512100
Overview :
Power up your productivity, gaming, and content-creation experiences by installing the Intel Core i3-12100 3.3 GHz Quad-Core LGA 1700 Processor into your desktop computer system. Built using the Alder Lake architecture with the Intel 7 process, this 12th generation 3.3 GHz desktop processor’s four Performance-cores support up to 8 threads and provide the speed for applications and games. Additionally, this processor has a 4.3 GHz Boost 2.0 frequency with 12MB of cache for fast and reliable performance. The Core i3-12100 also includes support for PCI Express 5.0 and dual-channel DDR5 memory at 4800 MHz to help run and multitask a variety of applications.
The Core i3-12100 features integrated Intel UHD 730 Graphics and includes an Intel Laminar RM1 thermal solution. The processor is compatible with Intel LGA 1700 socket motherboards and is backed by a 3-year warranty.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Integrated Graphics
Driven by Intel Xe architecture, the integrated Intel UHD 730 Graphics delivers rich performance with high-quality visuals.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Specification :
| General | |
| CPU Model | Intel Core i3-12100 (12th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 5.0) |
| 4 (Revision 4.0) | |
| Unlocked | No |
| Performance | |
| Number of Cores | 4 (4 x P-Cores) |
| Number of Threads | 8 |
| Base Clock Speed | P-Core: 3.3 GHz |
| Maximum Boost Speed | P-Core Turbo: 4.3 GHz |
| L3 Cache | 12 MB |
| Memory Support | |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 3200 MHz |
| DDR5 4800 MHz | |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 76.8 GB/s |
| Optane Memory Support | Yes |
| Power | |
| Thermal Design Power (TDP) | 60 W |
| Included Thermal Solution | Laminar RM1 (89 W) |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | No |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Hyper-Threading, SpeedStep, Turbo Boost 2.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
| Integrated Graphics | |
| Integrated Graphics | Intel UHD Graphics 730 |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12 |
| OpenGL: 4.5 | |
| Number of Displays | 4 |
| Output Support | eDP, DisplayPort, HDMI |
| Base Clock Speed | 300 MHz |
| Maximum Boost Speed | 1.4 GHz |
