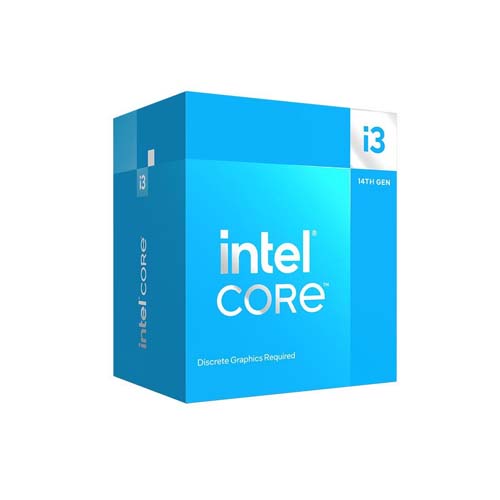

Intel Core i3-14100F Core i3 14th Gen Raptor Lake 4-Core LGA 1700 Processor BX8071514100F
Overview :
Intel Core i3 14100F – desktop processor produced by Intel for socket LGA-1700 that has 4 cores and 8 threads. The base clock frequency of the CPU is 3500 MHz, but due to Turbo Boost technology, it can perform up to 4700 MHz. The size of the L3 cache is 12 MB. Please note that this chip doesn’t have integrated graphics.
CIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Specification :
| Brand | Intel |
| Processors Type | Desktop |
| Series | Core i3 14th Gen |
| Name | Core i3-14100F |
| Model | BX8071514100F |
| Details | |
| CPU Socket Type | LGA 1700 |
| Core Name | Raptor Lake |
| # of Cores | 4-Core (4P 0E) |
| # of Threads | 8-Threads |
| Max Turbo Frequency | P-core Max Turbo Frequency: Up to 4.7 GHz |
| L2 Cache | 5MB |
| L3 Cache | 12MB |
| Manufacturing Tech | Intel 7 |
| 64-Bit Support | Yes |
| Hyper-Threading Support | Yes |
| Memory Types | DDR4 3200 / DDR5 4800 |
| Memory Channel | 2 |
| Max Memory Size | 192 GB |
| Virtualization Technology Support | Yes |
| Integrated Graphics | None Integrated Graphics |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 / 4.0 |
| Max Number of PCI Express Lanes | 20 |
| Thermal Design Power | 60W |
| Max Turbo Power | 110W |
| Cooling Device | Intel Laminar RM1 included |
| Compatible Desktop Chipsets | Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790 * BIOS update may be required when used with some old chipset motherboard |
| Operating System Supported | Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2) |
