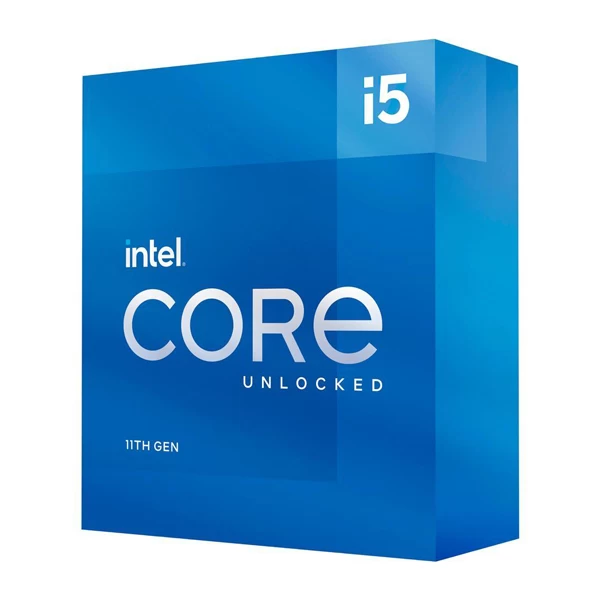

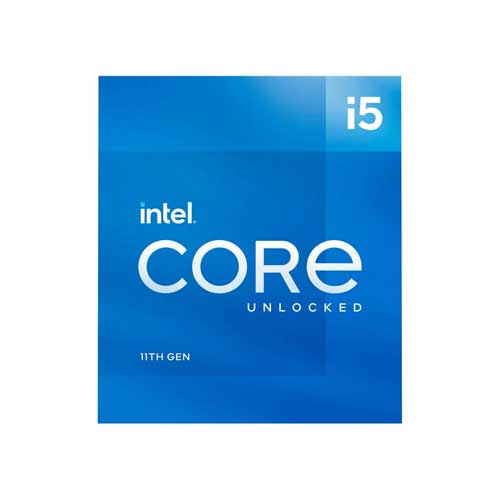

Intel Core i5-11600K 11th Generation Rocket Lake Processor
Specification :
| Product Collection | 11th Generation Intel® Core™ i5 Processors |
| Code Name | Products formerly Rocket Lake |
| Vertical Segment | Desktop |
| Processor Number | i5-11600K |
| CPU Specifications | |
| # of Cores | 6 |
| # of Threads | 12 |
| Processor Base Frequency | 3.90 GHz |
| Max Turbo Frequency | 4.90 GHz |
| Cache | 12 MB Intel® Smart Cache |
| Bus Speed | 8 GT/s |
| Intel® Turbo Boost Technology 2.0 Frequency‡ | 4.90 GHz |
| TDP | 125 W |
| Configurable TDP-down Frequency | 3.60 GHz |
| Configurable TDP-down | 95 W |
| Supplemental Information | |
| Embedded Options Available | No |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 128 GB |
| Memory Types | DDR4-3200 |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 50 GB/s |
| ECC Memory Supported ‡ | No |
| Processor Graphics | |
| Processor Graphics ‡ | Intel® UHD Graphics 750 |
| Graphics Base Frequency | 350 MHz |
| Graphics Max Dynamic Frequency | 1.30 GHz |
| Graphics Video Max Memory | 64 GB |
| Execution Units | 32 |
| 4K Support | Yes, at 60Hz |
| Max Resolution (HDMI)‡ | 4096×2160@60Hz |
| Max Resolution (DP)‡ | 5120 x 3200 @60Hz |
| Max Resolution (eDP – Integrated Flat Panel)‡ | 5120 x 3200 @60Hz |
| DirectX* Support | 12.1 |
| OpenGL* Support | 4.5 |
| Intel® Quick Sync Video | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Clear Video HD Technology | Yes |
| Intel® Clear Video Technology | Yes |
| # of Displays Supported ‡ | 3 |
| Device ID | 0x4C8A |
| OpenCL* Support | 3 |
| Expansion Options | |
| Scalability | 1S Only |
| PCI Express Revision | 4 |
| PCI Express Configurations ‡ | Up to 1×16 1×4, 2×8 1×4, 1×8 3×4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1200 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2019A |
| TJUNCTION | 100°C |
| Package Size | 37.5 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Thermal Velocity Boost | No |
| Intel® Turbo Boost Max Technology 3.0 ‡ | No |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel vPro® Platform Eligibility ‡ | Yes |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology ‡ | Yes |
| Intel® Stable Image Platform Program (SIPP) | Yes |
| Intel® Gaussian and Neural Accelerator 2.0 | Yes |
| Security & Reliability | |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® Software Guard Extensions (Intel® SGX) | No |
| Intel® OS Guard | Yes |
| Intel® Trusted Execution Technology ‡ | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
