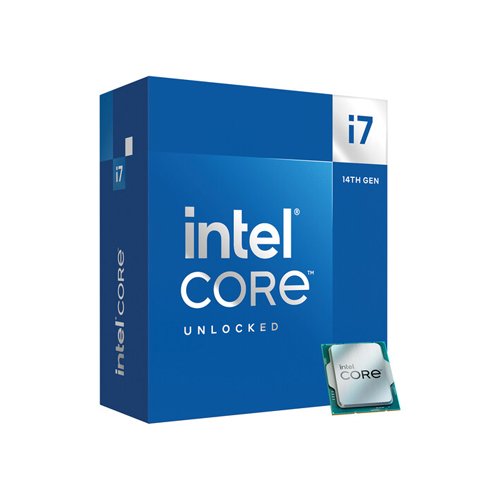

Intel Core i7-14700F 2.1 GHz 20-Core LGA 1700 Processor BX8071514700F
Overview :
Power up your productivity, gaming, and content creation with the Intel Core i7-14700F 2.1 GHz 20-Core LGA 1700 Processor. Built with the Intel 7 process, this 14th generation desktop processor delivers improved power efficiency with a total of 20 cores while fitting the LGA 1700 socket. Featuring an optimized Hybrid Core Architecture, the Core i7-14700F powers demanding applications and games with eight 2.1 GHz Performance-cores, while the 12 low-voltage Efficient-cores handle background tasks for smooth multitasking. The built-in Intel Thread Director ensures that the two work seamlessly together by dynamically and intelligently assigning workloads to the right core at the right time.
With 33MB of cache and a 5.4 GHz Turbo Boost Max 3.0 frequency, this processor is made to handle intense workloads. The Core i7-14700F also supports PCI Express 5.0 and up to 192GB of dual-channel DDR5 ECC memory at 5600 MHz.
The Core i7-14700F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A Laminar RM1 cooler is included.
Hybrid Core Design
Performance-cores provide the speed to handle high-end games and demanding applications while low-priority and background tasks such as streaming video, playing music, and encoding media are handled by the processor’s Efficient-cores.
Intel Thread Director
The Intel Thread Director is built into the CPU’s cores, working with the operating system to ensure each of the 28 threads are assigned to the right core at the right time.
PCIe 4.0 & 5.0
This processor supports up to four PCIe 4.0 and sixteen PCIe 5.0 lanes, delivering 20 lanes in total for exceptional data throughput with compatible devices.
Gaussian & Neural Accelerator 3.0
Gaussian and Neural Accelerator 3.0 (GNA) technology helps with noise suppression while enhancing background blurring during video chats.
Intel Deep Learning Boost
Accelerates AI inference to improve performance for deep learning workloads.
Specification :
| General | |
| CPU Model | Intel Core i7-14700F (14th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 20 (Revision 5.0) |
| Unlocked | No |
| Performance | |
| Number of Cores | 20 (8 x P-Cores + 12 x E-Cores) |
| Number of Threads | 28 |
| Base Clock Speed | P-Core: 2.1 GHz |
| E-Core: 1.5 GHz | |
| Maximum Boost Speed | P-Core Turbo 3.0: 5.4 GHz |
| P-Core Turbo: 5.3 GHz | |
| E-Core Turbo: 4.2 GHz | |
| Dedicated AI Cores | No |
| L3 Cache | 33 MB |
| Memory Support | |
| Maximum Capacity | 192 GB |
| Memory Support | DDR5 Up to 5600 MT/s |
| DDR4 Up to 3200 MT/s | |
| ECC Memory | Yes |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 89.6 GB/s |
| Optane Memory Support | No |
| Power | |
| Thermal Design Power (TDP, Max) | 65 W |
| Included Thermal Solution | Laminar RM1 |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | AVX 2.0, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | Yes |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 3.0, Thermal Velocity Boost, Turbo Boost Max 3.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key |
| Packaging Info | |
| Package Weight | 1.045 lb |
| Box Dimensions (LxWxH) | 5.1 x 4.6 x 2″ |
