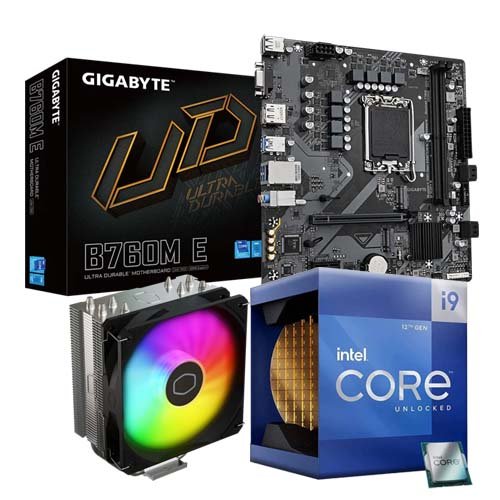

Intel Core i9-12900K Processor Gigabyte B760M E DDR5 Motherboard Hyper 212 Spectrum Cooler Bundle
Specification :
Intel Core i9-12900K Processor
| General | |
| CPU Model | Intel Core i9-12900K (12th Gen) |
| CPU Socket | LGA 1700 |
| Manufacturing Process | 10 nm |
| Maximum CPU Configuration | 1S |
| Maximum Number of PCIe Lanes | 16 (Revision 5.0) |
| 4 (Revision 4.0) | |
| Unlocked | Yes |
| Performance | |
| Number of Cores | 16 (8 x P-Cores 8 x E-Cores) |
| Number of Threads | 24 |
| Base Clock Speed | P-Core: 3.2 GHz |
| E-Core: 2.4 GHz | |
| Maximum Boost Speed | 5.2 GHz |
| P-Core Turbo: 5.1 GHz | |
| E-Core Turbo: 3.9 GHz | |
| L3 Cache | 30 MB |
| Memory Support | |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 3200 MHz |
| DDR5 4800 MHz | |
| ECC Memory | No |
| Channel Architecture | Dual Channel |
| Maximum Memory Bandwidth | 76.8 GB/s |
| Optane Memory Support | Yes |
| Power | |
| Thermal Design Power (TDP) | 125 W |
| Included Thermal Solution | None |
| Maximum Temperature | 212°F / 100°C |
| Thermal Monitoring Technologies | Yes |
| Technology | |
| AES Support | Yes |
| Extension | AVX 2.0, AVX-512, SSE 4.1/4.2 |
| Instruction Set | 64-Bit |
| Virtualization | Yes: Intel VT-d, Intel VT-x, Intel VT-x with Extended Page Tables (EPT) |
| DMI | DMI4 (16 GT/s) |
| vPro Support | Yes |
| Performance Technologies | Deep Learning Boost, Gaussian and Neural Accelerator 2.0, Hyper-Threading, Intel Thread Director, SpeedShift, Stable Image Platform Program, Thermal Velocity Boost, Turbo Boost 2.0, Turbo Boost Max 3.0 |
| Security Technologies | Control-Flow Enforcement (CET), Device Protection with Boot Guard, Execute Disable Bit, MBE (Mode-Based Execute) Control, OS Guard, Secure Key, Software Guard Extensions, Threat Detection Technology (TDT), Trusted Execution Technology |
| Video Technologies | Clear Video, Clear Video HD, InTru 3D, Quick Sync Video |
| Integrated Graphics | |
| Graphics Chipset | Intel UHD Graphics 770 |
| Maximum Resolution Support | 7680 x 4320 at 60 Hz |
| Supported APIs | DirectX: 12 |
| OpenGL: 4.5 | |
| Number of Displays | 4 |
| Output Support | DisplayPort, HDMI |
| Base Clock Speed | 300 MHz |
| Maximum Boost Speed | 1.55 GHz |
| Packaging Info | |
| Package Weight | 1.01 lb |
| Box Dimensions (LxWxH) | 6.5 x 5.3 x 5.2″ |
Gigabyte B760M E DDR5 Motherboard
| Model | Gigabyte B760M E DDR5 |
| CPU Support | Intel 12th, 13th & 14th Gen (LGA1700) |
| Chipset | Intel B760 Express |
| Memory | DDR5 up to 7200+ MHz (OC), Dual Channel, 128GB Max |
| Graphics Output | HDMI 2.1, DisplayPort 1.2, D-Sub (Triple Display Support) |
| Storage | 2 × M.2 PCIe 4.0 Slots, 4 × SATA 6Gb/s |
| Expansion Slots | PCIe 4.0 x16 (GPU) + PCIe 3.0 x1 |
| LAN | Realtek Gigabit LAN |
| Audio | Realtek HD Audio, 7.1 Channel Support |
| USB Ports | 4 × USB 3.2 Gen1, 2 × USB 2.0 (rear), others via headers |
| Special Features | Q-Flash, GCC Support, Fan/Temp Monitoring |
| Form Factor | Micro-ATX |
Cooler Master Hyper 212 Spectrum Cooler
| Product Name | Hyper 212 Spectrum V3 |
| Product Number | RR-S4NA-17PA-R1 |
| Exterior Color | Silver |
| CPU Socket | Intel® LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156 socket |
| AMD® AM5 / AM4 | |
| Dimensions (Lx W x H) | 124 x 73 x 152 mm ( 4.8 x 2.8 x 5.9 inch) |
| Heat Sink Material | 4 Heat Pipes/ Aluminum Fins |
| Fan | |
| Fan Size | 120mm Fan |
| Dimensions (L x W x H) | 120 x 120 x 25mm |
| Profile | Addressable RGB |
| Quantity (pcs) | 1 PC |
| Speed | 650 ~ 1750 RPM ± 10% |
| Airflow (Max) | 122.2 m³/h (71.93 CFM) |
| Pressure (Max) | 1.86 mmH₂O |
| MTTF | >160,000 Hours |
| Noise Level (Max) | 31.4 dB(A) |
| Bearing | Rifle |
| Power Connector | 4-Pin PWM |
| Rated Voltage | 12 VDC |
| Rated Current | 0.26 A |
| Safety Current | 0.37 A |
| Power Consumption | 3.12 W |
| Warranty | 2 Years |
