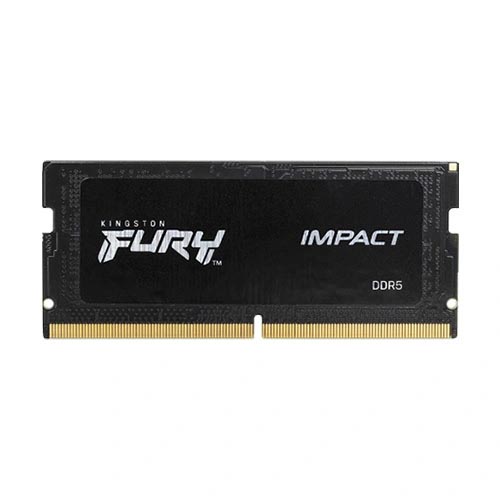

Kingston Fury Impact 16GB 6000MHz CL38 DDR5 Laptop Memory KF560S38IB-16
Overview :
16GB 2G x 64-Bit
DDR5-6000 CL38 262-Pin SODIMM
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.18” (30mm)
Kingston FURY KF560S38IB-16 is a 2G x 64-bit (16GB) DDR5-6000 CL38 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel Extreme Memory Profiles (Intel XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 38-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin DIMM uses gold contact fingers.
DEFAULT SPECIFICATIONS
- CL(IDD): 40 cycles
- Row Cycle Time (tRCmin): 48ns(min)
- Refresh to Active/Refresh Command Time (tRFCmin): 295ns(min)
- Row Active Time (tRASmin): 32ns(min)
- UL Rating: 94 V – 0
- Operating Temperature: 0o C to +95o C
- Storage Temperature: -55o C to +100o C
Specification :
| Model | KF560S38IB-16 |
| Product Series | FURY IMPACT |
| Memory Type | DDR5 |
| Capacity | 16GB |
| Kit Type | 16GB x 1 |
| Speed | 6000 MHz |
| Tested Latency | 38-38-38 |
| Tested Voltage | 1.35 V |
| Dimm Type | SODIMM |
| Profile Type | Intel XMP |
| Warranty | Limited Lifetime |
