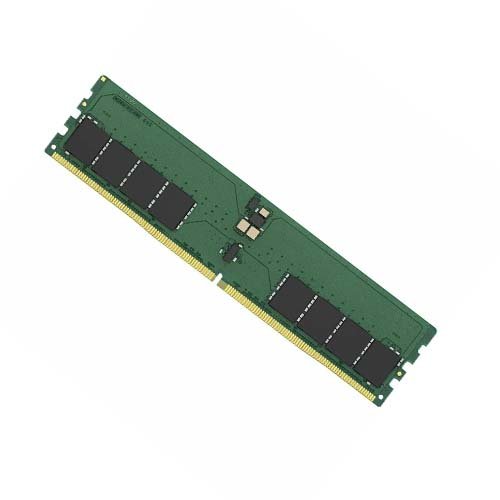

Kingston KVR64A52BD8-64 ValueRAM 64GB DDR5 Desktop Memory 6400 MHz
Overview :
64GB 2Rx8 8G x 64-Bit
PC5-6400 CL52 288-Pin CUDIMM
Kingston KVR64A52BD8-64 ValueRAM 64GB DDR5 Memory 6400 MHz PC5-51200 288-pin NON-ECC DIMM Unbuffered
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free
• With Clock Driver
Specification :
| General Information | |
| Product Type | RAM Module |
| Brand Name | Kingston |
| Manufacturer | Kingston Technology Company |
| Product Name | ValueRAM RAM Module |
| Product Line | ValueRAM |
| Manufacturer Part Number | KVR64A52BD8-64 |
| Manufacturer Website Address | http://www.kingston.com |
| Technical Information | |
| Memory Voltage | 1.10 V |
| Memory Rank | Dual-rank |
| Memory Standard | DDR5-6400/PC5-51200 |
| Memory Technology | DDR5 SDRAM |
| CAS Latency | CL52 |
| Memory Size | 64 GB |
| Memory Speed | 6400 MHz |
| Device Supported | Computer |
| Signal Processing | Unbuffered |
| Physical Characteristics | |
| Width | 1.2″ |
| Form Factor | DIMM |
| Length | 5.3″ |
| Number of Pins | 288-pin |
| Thickness | 151.6 mil |
