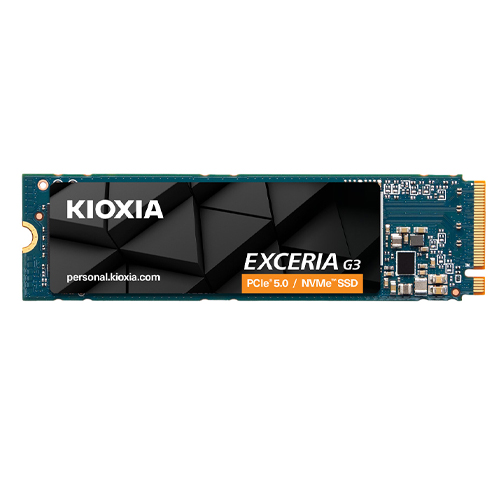

Kioxia Exceria G3 2TB NVMe SSD LVC10Z002TG8
Overview :
Take your first step into PCIe® 5.0 Performance. The KIOXIA EXCERIA G3 SSD Series, an entry-level model supporting PCIe® 5.0, takes performance to the next level with up to 10,000 MB/s of sequential read speed*1, not only accelerating everyday PC tasks, but also supporting AI applications and helping build a comfortable gaming environment. Leveraging BiCS FLASH™ 3D flash memory, this updated SSD series now offers up to 4TB of capacity in a M.2 2280 form factor suitable for both desktops and notebooks.
- BiCS FLASH™
- NVMe™ 2.0c Technology
- M.2 2280 Form Factor
- PCIe® Gen5 x4
- SSD Utility Management Software
First Step into PCIe® 5.0 Performance
Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10,000 MB/s for sequential reads and 9,600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe® 5.0 performance.
Advanced Heat Dissipation
EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.
NVMe™ Technology
Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
Specification :
| Capacity | 2TB |
| Form Factor | M.2 Type 2280-S3-M |
| Interface | PCI Express® Base Specification Revision 5.0 (PCIe®) |
| Flash Memory type | BiCS FLASH™ QLC |
| Interface Maximum Speed | 128 GT/s (PCIe® Gen5 x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.38 mm |
| Interface Protocol | NVM Express™ Base Specification 2.0c |
| Weight | 2TB, 4TB: 5.8 g (typ.) |
| Performance | |
| Max Sequential Read Speed*1 | 10,000 MB/s |
| Max Sequential Write Speed*1 | 2TB : 9,600 MB/s |
| Max Random Read Speed*2 | 2TB: 1,600,000 IOPS |
| Max Random Write Speed*2 | 1,450,000 IOPS |
| Endurance: TBW*3 | 2TB: 1,200 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption | PS3: 50 mW (typ.) |
| PS4: 5 mW (typ.) | |
| Power Consumption (Active) | 2TB : 6.4 W (typ.) |
| Compatibility | |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Others | |
| Services and Support | Up to 5-year manufacturer’s warranty*4 |
| Performance Optimization | TRIM, Idle Time Garbage Collection, Host Memory Buffer |
| Product Info | 2TB PN: LVC10Z002TG8 |
