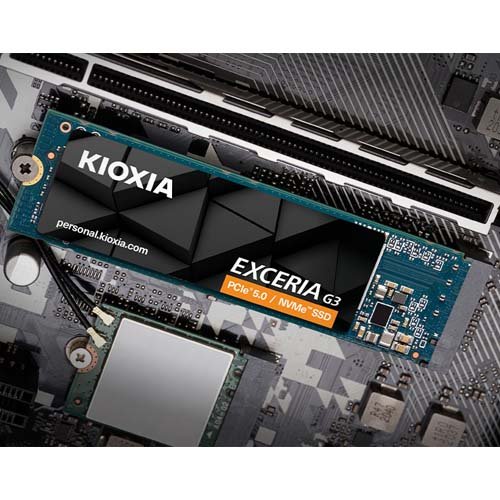

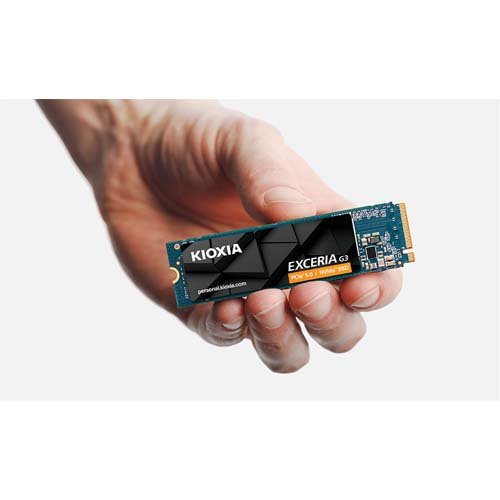

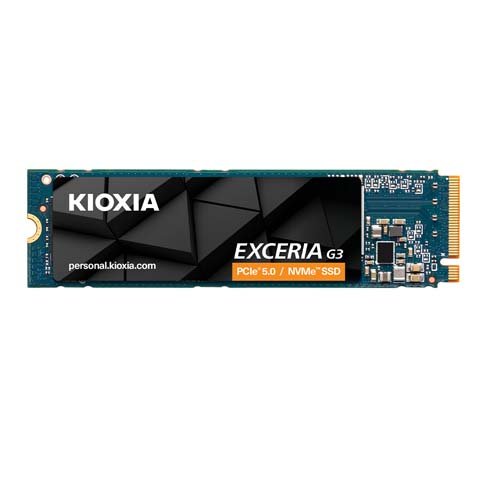

Kioxia Exceria G3 SSD Series 1TB M.2 NVMe Gen5 Internal SSD LVC10Z001TG8
Overview :
Featuring the latest and greatest PCIe® 5.0 interface, the EXCERIA G3 SSD series delivers excellent transfer speeds of up to 10,000 MB/s for sequential reads and 9,600 MB/s for sequential writes. Whether you are loading the latest game or editing the video, this new series is the ideal choice for anyone looking to experience PCIe® 5.0 performance.
BiCS FLASH™
NVMe™ 2.0c Technology
M.2 2280 Form Factor
PCIe® Gen5 x4
SSD Utility Management Software
Advanced Heat Dissipation
EXCERIA G3 SSDs feature innovative product labels to enhance heat dissipation for advanced performance stability.
NVMe™ Technology
Utilizing the NVMe™ 2.0c technology, EXCERIA G3 SSDs reduce latency in your system’s I/O path between your SSD and your CPU, resulting in smooth and responsive performance.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH™ and a vertically stacked cell structure, delivering a cutting-edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
Specification :
Capacity
1TB
Form Factor
M.2 Type 2280-S3-M
Interface
PCI Express® Base Specification Revision 5.0 (PCIe®)
Flash Memory type
BiCS FLASH™ QLC
Interface Maximum Speed
128 GT/s (PCIe® Gen5x4)
Dimension (Max: LxWxH)
80.15 x 22.15 x 2.38 mm
Interface Protocol
NVM Express™ Base Specification 2.0c
Weight
1TB: 5.7 g (typ.)
Performance
Max Sequential Read Speed*1
10,000 MB/s
Max Sequential Write Speed*1
1TB: 8,900 MB/s
Max Random Read Speed*2
1TB: 1,300,000 IOPS
Max Random Write Speed*2
1,450,000 IOPS
Endurance: TBW*3
1TB: 600 TB
MTTF
1.5 million hours
Operating environment / protection performance
Operating Temperature
0 ℃ (Ta) to 85 ℃ (Tc)
Storage Temperature
-40 ℃ to 85 ℃
Certification
RoHS compliant*5
Shock Resistance
9.806 km/s2 {1,000 G} 0.5 ms half sine wave
Vibration
25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis
Supply Voltage
3.3 V ±5 %
Power Consumption
PS3: 50 mW (typ.)
PS4: 5 mW (typ.)
Power Consumption (Active)
1TB: 5.5 W (typ.)
Compatibility
Connector Type
M.2 M key Socket
Target Applications
Client desktops and laptops
Others
Services and Support
Up to 5-year manufacturer’s warranty*4
Performance Optimization
TRIM, Idle Time Garbage Collection, Host Memory Buffer
