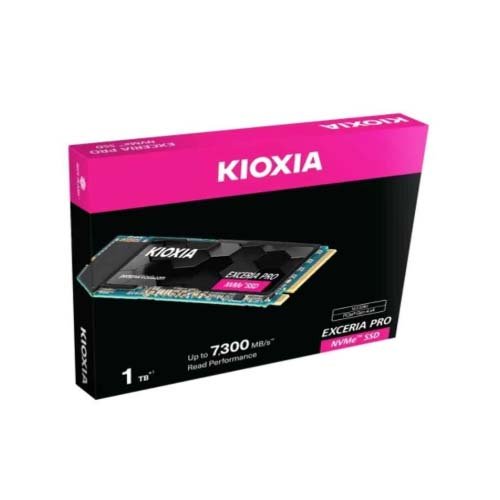

Kioxia Exceria Pro 1TB M.2 NVMe Gen4 Internal SSD LSE10Z001TG8
Overview :
Kioxia Exceria Pro 1TB M.2 SSD is a high-performance storage for your gaming system with sequential read speeds of up to 7300 MB/s. Build with BiCS FLASH, NVMe 1.3c Technology. This SSD is suitable for both desktops and laptop.
The all-new KIOXIA EXCERIA PRO SSD Series uses next generation technology to take your high-end computing and gaming into a new realm of possibilities. Leveraging PCI Express 4.0 technology, this M.2 2280 single-sided series now offers 1TB of capacity well-suited for both high performance desktops and notebooks needing maximum speed.
BiCS FLASH
NVMe 1.4 Technology
M.2 2280 Form Factor
PCIe Gen4 x4
SSD Utility Management Software
Game-Changing Performance
Imagine up to 7,300 MB/s of sequential read speed and up to 6,400 MB/s sequential write speed, and you have the KIOXIA EXCERIA PRO Series. Designed to reduce game loading, video editing and graphic rendering time, the EXCERIA PRO Series helps your content creation or gaming environment excel.
Small and Compact for an Easy Upgrade
Featuring a thin, single-sided M.2 2280 form factor, the EXCERIA PRO SSD series plugs directly into the motherboard, reducing additional cable clutter for a sleeker and an easy system upgrade.
PCIe 4.0 Technology
This “hero” class KIOXIA SSD delivers powerful performance utilizing the PCIe 4.0 and NVMe 1.4 technology. EXCERIA PRO SSD series push the boundaries of flash storage technology, offering enhanced real-world performance that will blow away hardcore gamers and content creators.
Cutting-Edge 3D Flash Memory
Each EXCERIA SSD is built with BiCS FLASH and a vertically stacked cell structure, delivering a cutting edge storage experience.
SSD Utility Management Software
The SSD Utility management software was designed to help your KIOXIA drive thrive and lets you be in control of maintenance, monitoring and more!
We highly recommend you install and update to the latest version to maximize your drive’s performance and check its Percentage Life Left using the health gauge.
Specification :
| Model | EXCERIA PRO SSD |
| P/N | LSE10Z001TG8 |
| Capacity | 1TB |
| Form Factor | M.2 Type 2280-S2-M |
| Interface | PCI Express Base Specification Revision 4.0 (PCIe) |
| Flash Memory type | BiCS FLASH TLC |
| Interface Maximum Speed | 64 GT/s (PCIe Gen4x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.23 mm |
| Interface Command | NVM Express Revision 1.4 command set |
| Weight | 7.6 g |
| Performance | |
| Max Sequential Read Speed | 7,300 MB/s |
| Max Sequential Write Speed | 6,400 MB/s |
| Max Random Read Speed | 1,000,000 IOPS |
| Max Random Write Speed | 1,100,000 IOPS |
| TBW | 400 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 196 m/s2 {20 G} Peak, 10~2,000 Hz, (20 min / Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption |
|
| Power Consumption (Active) | 8.9 W |
| Compatibility | |
| PCI Express | Compatible with PCI Express Base Specification Revision 4.0 and NVM Express Revision 1.4 command set |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Warranty | Up to 5-year manufacturer’s warranty |
