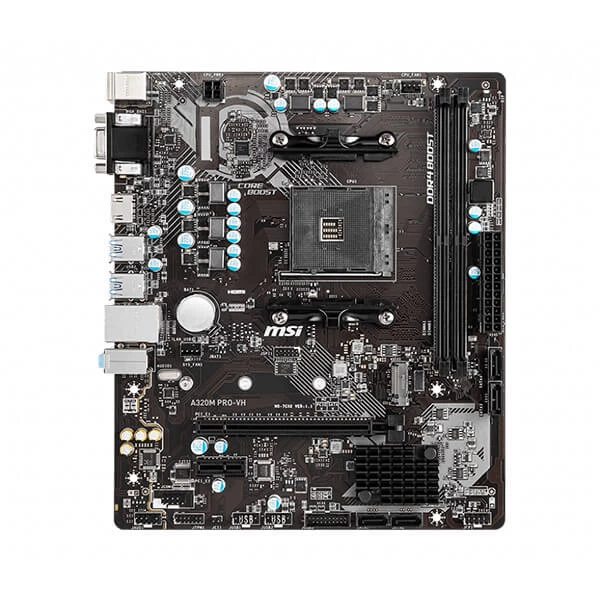

MSI A320M Pro-VH AM4 Micro-ATX Motherboard
Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
Supports DDR4 Memory, up to 3200(OC) MHz
Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
Core Boost: With premium layout and digital power design to support more cores and provide better performance
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
Audio Boost: Reward your ears with studio grade sound quality
Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface
Specifications
CP |
Supports 1st, 2nd and 3rd Gen AMD® Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD® Ryzen™ with Radeon™ Graphics, Athlon™ with Radeon™ Vega Graphics, A-series and Athlon™ X4 Desktop Processors for Socket AM4 |
Chipset |
AMD A320 Chipset |
Memory |
2x DDR4 memory slots, support up to 32GB
- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
- Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE)
- Dual channel memory architecture
- Supports ECC UDIMM memory (non-ECC mode)
- Support non-ECC UDIMM memory
|
Expansion Slot |
- 1x PCIe 3.0 x16 slot
- Supports x16 speed
- 1st, 2nd and 3rd Gen AMD Ryzen™
- Supports x8 speed
- Ryzen™ with Radeon™ Vega Graphics
- 2nd Gen AMD Ryzen™ with Radeon™ Graphics
- A-series
- Athlon™ X4 Supports x4
- speed
- AMD® Athlon™ with Radeon™ Vega Graphics
- 1x PCIe 2.0 x1 slot
|
Onboard Graphics |
- 1x VGA port, supports a maximum resolution of 2048×1280 @60Hz1
- 1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @24Hz2
1)Only support when using the processor with Graphics
2)Maximum shared memory of 2048 MB |
Storage |
- AMD A320 Chipset
- 4x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10
- 1x M.2 slot (Key M)
- Supports PCIe 3.0 x4 and SATA 6Gb/s
- 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen™ with Radeon™ Vega Graphics
- 2nd Gen AMD Ryzen™ with Radeon™ Graphics
- Supports PCIe 3.0 x2 and SATA 6Gb/s
- AMD® Athlon™ with Radeon™ Vega Graphics
- A-series
- Athlon™ X4
- Supports 2242/ 2280/ 22110 storage devices
|
USB |
- 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors
|
Audio |
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
|
LAN |
1x Realtek®8111H Gigabit LAN controller |
Internal connectors |
- 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x Front panel connectors
- 1x TPM module connector
- 1x Chassis Intrusion connector
- 1x Serial port connector
- 1x Clear CMOS jumper
|

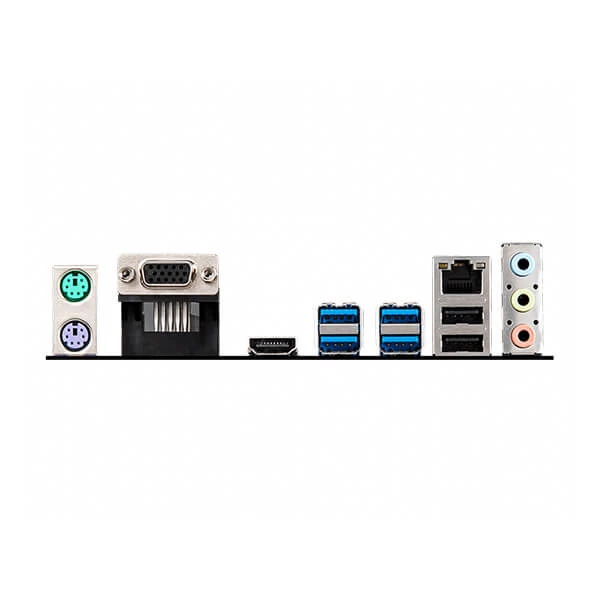

Back panel ports |
- Mouse
- VGA
- LAN
- HD
- Audio
- Connectors
- Keyboard
- HDMI
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 1 5Gbps Type-A
- USB 2.0
|
Dimensions |
- M-ATX Form Factor
- 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm)
|
MOUNTING |
6 mounting holes |
Warranty |
3 Years |
