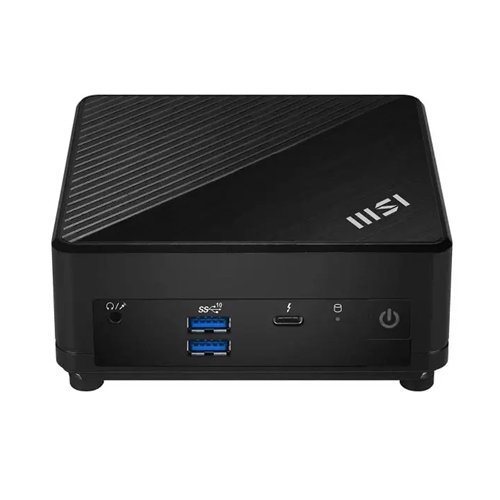

Msi Cubi N ADL S-213BIN with Intel CELERON Processor N100 WIFI, Bluetooth Mini PC
Overview :
MSI Cubi 5 12M Barebone Mini PC with Intel 12th Gen Alder Lake Core i3-1215U processors Integrated Graphics, NO OS Included, NO RAM Included, NO Storage Included ,supports WiFi 6, Dual LAN, Thunderbolt 4 Port, USB 3.2 Gen 1 Type-C (Black)
Feature
- 4.4 GHz Intel 12th Gen Core i3-1215U 6-Core 12th Threads
- supports 32GB 3200 MHz DDR4 RAM
- Integrated Intel UHD Graphics
- supports 512GB M.2 NVMe SSD
- 2.5 GbE & Gigabit Ethernet Ports
- Wi-Fi 6E (802.11ax) / Bluetooth 5.2
- 1 x Thunderbolt 4, 4 x USB 3.2 Gen 2
- HDMI 2.0b & DisplayPort 1.4 Outputs
- VESA 100 x 100mm Compatible
- Windows 11 Pro
Specification :
| EAN | 4711377290258 |
| Part No | 936-B0A921-213 |
| MKT Name | Cubi N ADL S |
| SKU Name | Cubi N ADL S-213BIN |
| Color | Black |
| Chipsets | Soc |
| Module Type | SO-DIMM |
| Memory Slot(Total) | 1 |
| Memory Slot(Free) | 1 |
| Max Capacity | Max 16GB |
| CPU Number | Intel Processor N100 |
| CPU Clock | 0.8GHz |
| CPU Cores | 4 |
| TDP | 6W |
| Max Turbo Frequency | up to 3.40 GHz |
| Cache | 6 MB |
| Threads | 4 |
| Audio Chipset | Realtek ALC256 |
| Audio Type | 2.1 Channel HD Audio |
| mSATA slots(Free) | 0 |
| M.2 slots(Total) | 1 |
| M.2 slots(Free) | 1 |
| 2.5″ Drive Bays (Free) | 0 |
| 3.5″ Drive Bays(Free) | 0 |
| LAN | 2x Realtek RTL8111H |
| WLAN Version | 802.11ac 1×1+BT |
| BT Version | 5 |
| USB 3.2 Gen 2 Type C | 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) |
| USB 3.2 Gen 2 Type A | 2 |
| Mic-in/Headphone-out combo | 1 |
| USB 2.0 Type A (R) | 2 |
| RJ45 | 2 |
| HDMI out | 1x (v2.1) |
| DP out | 1x (v1.4) |
| Weight (Net kg) | 0.54 |
| Weight (Gross kg) | 1.39 |
| Product Dimension (WxDxH) (mm) | 124 x 124 x 53.7 |
| Product Dimension (WxDxH) (inch) | 4.88 x 4.88 x 2.11 |
| Inside Carton Dimension (WxDxH) (mm) | 205 x 220 x 94 |
| Inside Carton Dimension (WxDxH) (inch) | 8.07 x 8.66 x 3.7 |
| Net Weight (lbs) | 1.19 |
| Gross Weight (lbs) | 3.06 |
| USB 3.2 Gen 2 (10G) Type C | 1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) |
| USB 3.2 Gen 2 (10G) Type A | 2 |
| VESA size | 100 x 100 mm |
| Regulatory Compliance | FCC(Class B), CB/CE, UL(CUL), BSMI, VCCI, RCM(C-Tick) |
| AC Adaptor | 1 |
| Power Cord | 1 |
| Quick Guide | 1 |
| VESA Mount kit | 1 |
| Warranty | 24months |
