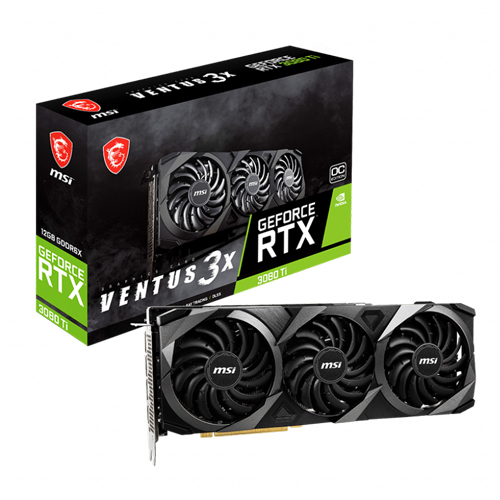

MSI GeForce RTX 3080 Ti VENTUS 3X 12G OC Graphic Card
Overview :
The GeForce RTX™ 3080 Ti delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.
Core / Memory
- Boost Clock / Memory Speed
1695 MHz / 19 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
Triple Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
- Zero Frozr: Calm before the storm, keeping fans still and maintaining silence until cooling is needed.
- Thermal Padding: An abundance of thermal pads use any chance for additional heat transfer directly from the components.
Metal Backplate
- A sturdy brushed aluminum backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Core Pipe
- Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specification :
| MODEL NAME | GeForce RTX™ 3080 Ti VENTUS 3X 12G OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3080 Ti |
| INTERFACE | PCI Express® Gen 4 |
| CORES | 10240 Units |
| CORE CLOCKS | Boost: 1695 MHz |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 384-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 350 W |
| POWER CONNECTORS | 8-pin x 2 |
| RECOMMENDED PSU | 750 W |
| CARD DIMENSION (MM) | 305 x 120 x 57 mm |
| WEIGHT (CARD / PACKAGE) | 1379 g / 1991 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
