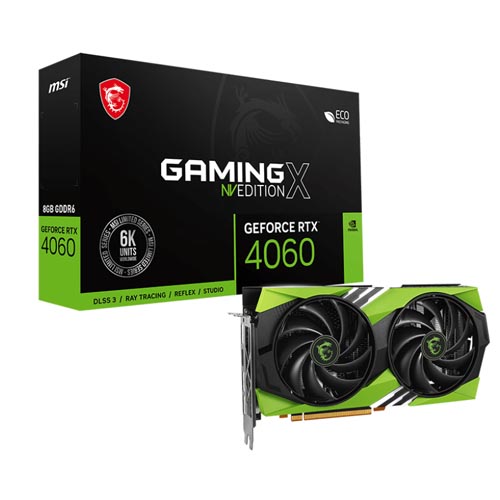

MSI GeForce RTX 4060 GAMING X NV EDITION 8G Graphic Card
Overview :
WITH DLSS 3
Game, stream, create. The GeForce RTX™ 4060 lets you take on the latest games and apps with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience immersive, AI-accelerated gaming with ray tracing and DLSS 3, and supercharge your creative process and productivity with NVIDIA Studio.
Boost Clock / Memory Speed
- 2595 MHz / 17 Gbps
- 8GB GDDR6
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TWIN FROZR 9 Thermal Design
- TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
- Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
- Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
Afterburner
- Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specification :
| MODEL NAME | GeForce RTX™ 4060 GAMING X NV EDITION 8G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4060 |
| INTERFACE | PCI Express® Gen 4 x 8 |
| CORE CLOCKS | Extreme Performance: 2610MHz (MSI Center) |
| Boost: 2595 MHz | |
| CUDA® CORES | 3072 Units |
| MEMORY SPEED | 17 Gbps |
| MEMORY | 8GB GDDR6 |
| MEMORY BUS | 128-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 115 W |
| POWER CONNECTORS | 8-pin x 1 |
| RECOMMENDED PSU | 550 W |
| CARD DIMENSION (MM) | 247 x 130 x 41 mm |
| WEIGHT (CARD / PACKAGE) | 627 g / 1055 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
