MSI GeForce RTX 4070 SUPER 12G VENTUS 2X OC Graphic Card
Overview :
WITH DLSS 3
Get equipped for supercharged gaming and creating with the NVIDIA® GeForce RTX™ 4070 SUPER. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience super fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- 2505 MHz / 21 Gbps
- 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

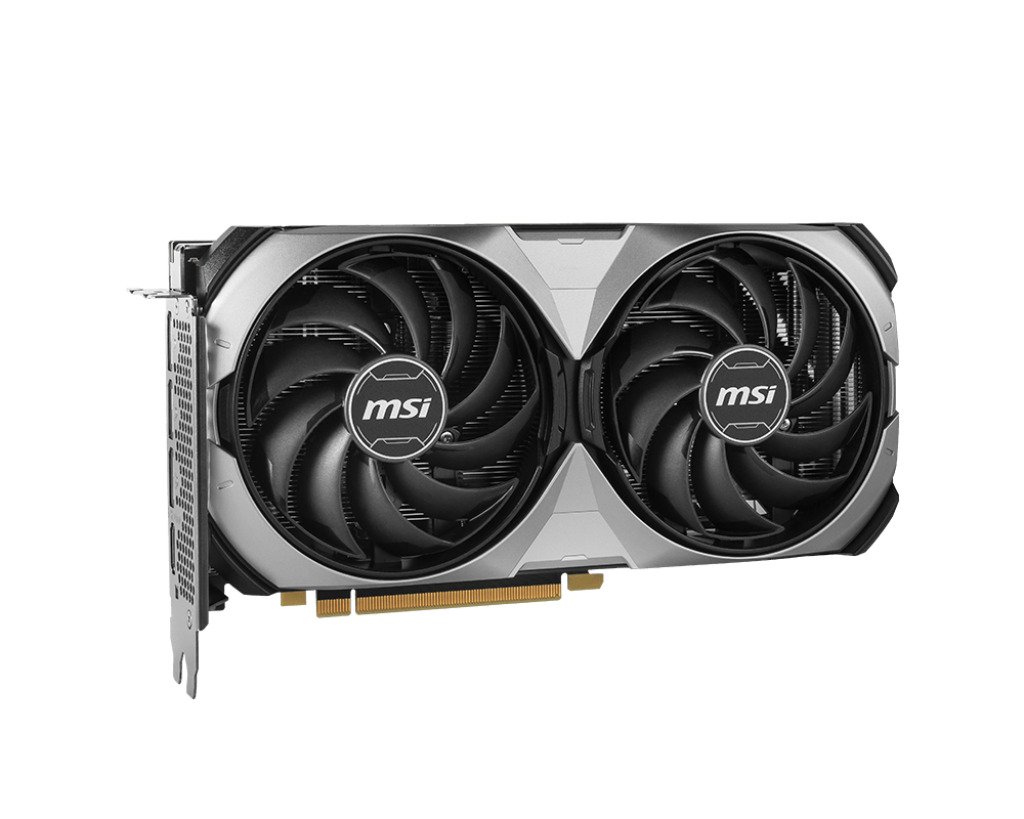

Dual Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr: The fans completely stop when temperatures are relatively low, eliminating all noise.

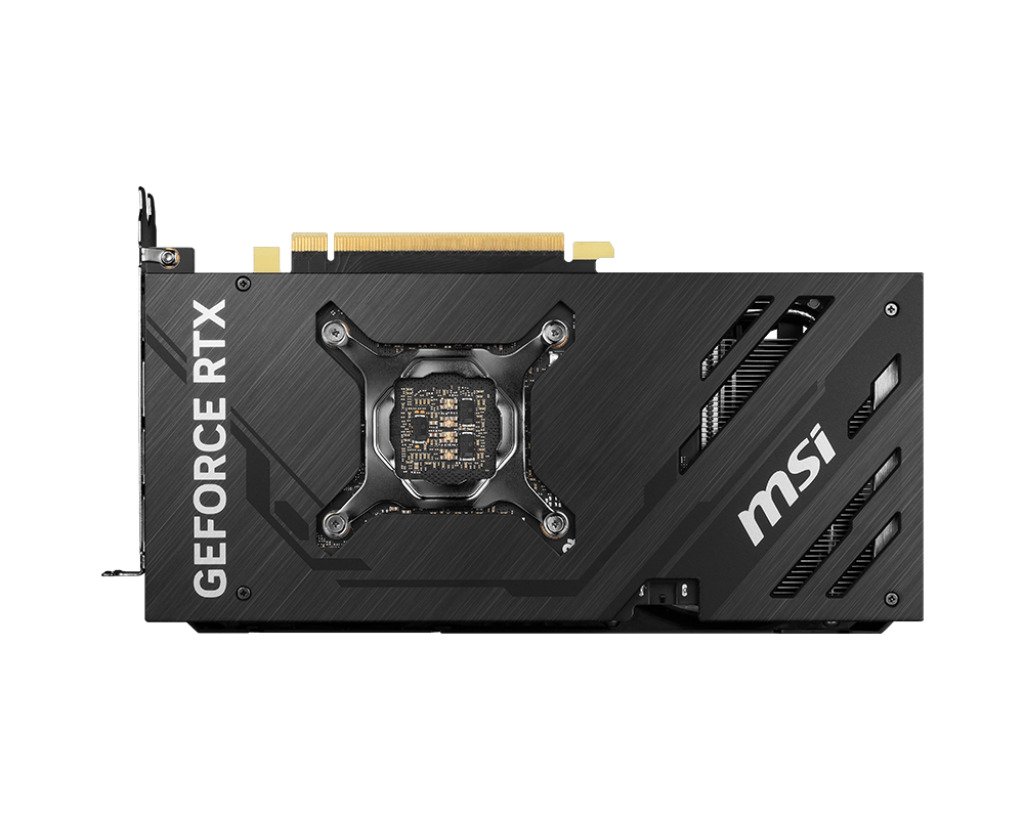

Reinforcing Backplate
- The reinforcing backplate features a flow-through design that provides additional ventilation.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specification :
| MODEL NAME | GeForce RTX™ 4070 SUPER 12G VENTUS 2X OC |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 SUPER |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2520 MHz (MSI Center) |
| Boost: 2505 MHz | |
| CUDA® CORES | 7168 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |

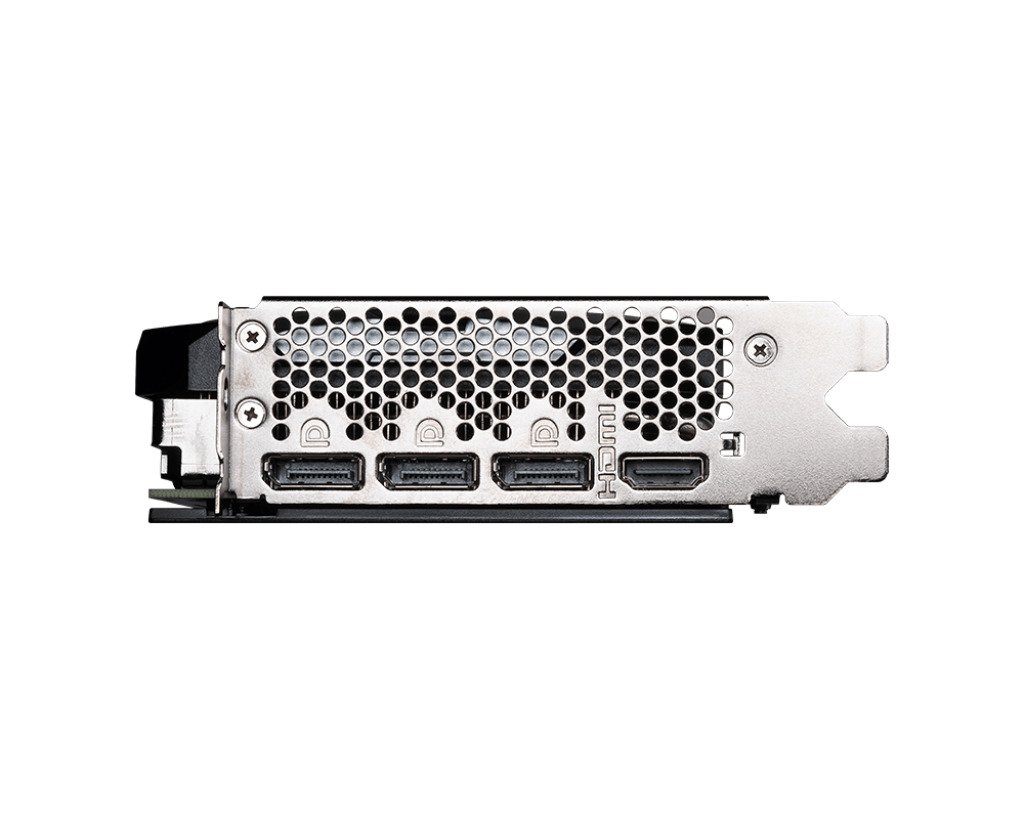

| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 220 W |

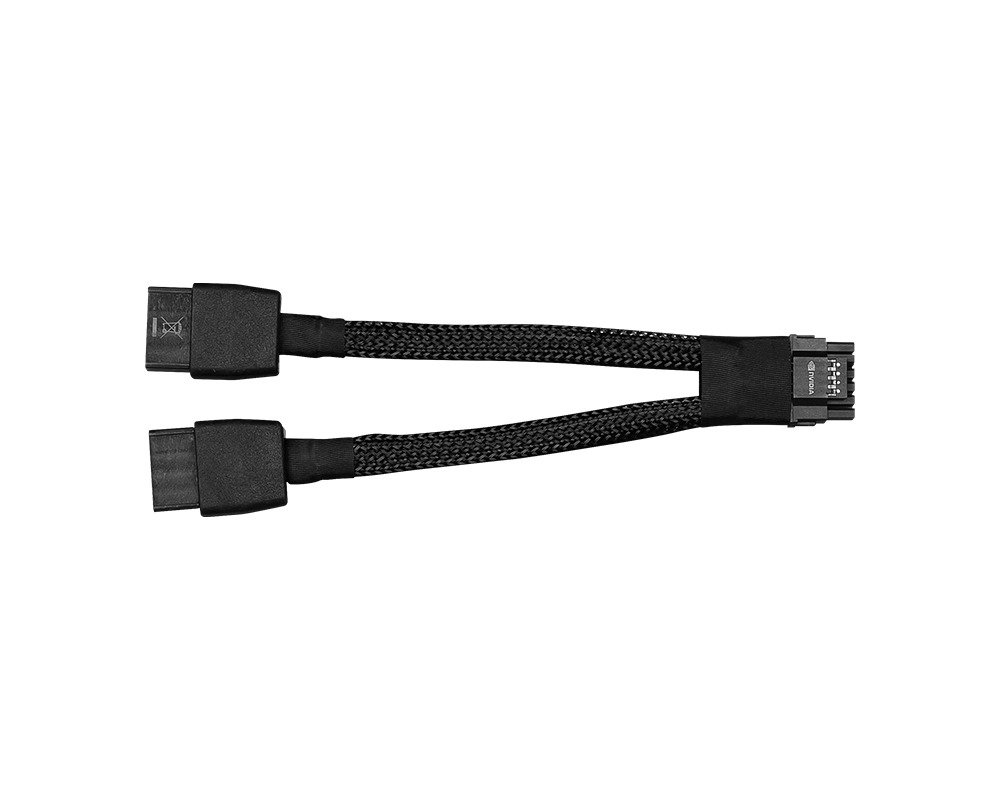

| POWER CONNECTORS | 16-pin x 1 |
| RECOMMENDED PSU | 650 W |
| CARD DIMENSION (MM) | 242 x 125 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 680 g / 998 g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
