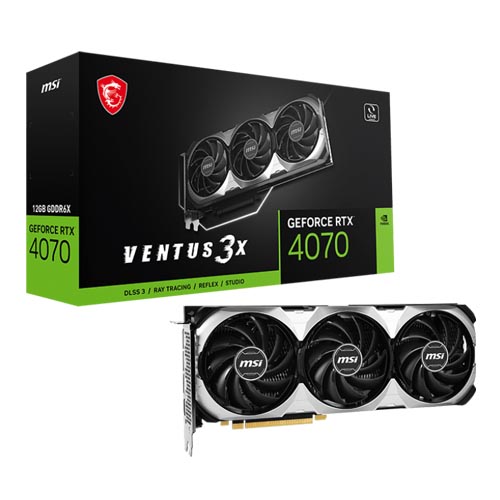

MSI GeForce RTX 4070 VENTUS 3X 12G 12GB GDDR6X Graphic Card
Overview :
WITH DLSS 3
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Boost Clock / Memory Speed
- Extreme Performance: 2490 MHz (MSI Center)
Boost: 2475 MHz
21 Gbps - 12GB GDDR6X
- DisplayPort x 3 (v1.4a)
HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
Triple Fan Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Core Pipe:Precision-crafted heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Zero Frozr:The fans completely stop when temperatures are relatively low, eliminating all noise.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak, and optimize MSI products in real-time.
Specification :
| MODEL NAME | GeForce RTX™ 4070 VENTUS 3X 12G |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 4070 |
| INTERFACE | PCI Express® Gen 4 |
| CORE CLOCKS | Extreme Performance: 2490 MHz (MSI Center) |
| Boost: 2475 MHz | |
| CUDA® CORES | 5888 Units |
| MEMORY SPEED | 21 Gbps |
| MEMORY | 12GB GDDR6X |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) |
| HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a) | |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 200W |
| POWER CONNECTORS | 8pin x 1 |
| RECOMMENDED PSU | TBD |
| CARD DIMENSION (MM) | 308 x 120 x 43 mm |
| WEIGHT (CARD / PACKAGE) | 811g/1152g |
| DIRECTX VERSION SUPPORT | 12 Ultimate |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| G-SYNC® TECHNOLOGY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
