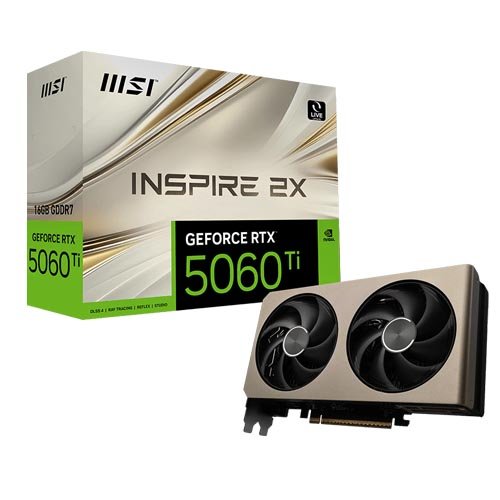

MSI GeForce RTX 5060 Ti 16G INSPIRE 2X Graphic Card
Overview :
BIG VISION, SMALL FORM
INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clock:
Extreme Performance: 2587 MHz (MSI Center)
Boost: 2572 MHz - STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- WAVE-CURVED 3.0: Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.
- AIR ANTEGRADE FIN: Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- MSI Center: gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification :
| Marketing Name | GeForce RTX™ 5060 Ti 16G INSPIRE 2X |
| Model Name | G506T-16I2 |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Interface | PCI Express® Gen 5 x16 (uses x8) |
| Core Clocks | Extreme Performance: 2587 MHz (MSI Center) |
| Boost: 2572 MHz | |
| CUDA® CORES | 4608 Units |
| Memory Speed | 28 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 128-bit |
| Output | DisplayPort x 3 (v2.1b) |
| HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| HDCP Support | Y |
| Power consumption | 180W |
| Power connectors | 8-pin x1 |
| Recommended PSU | 600 W |
| Card Dimension (mm) | 204 x 117 x 50 mm |
| Weight (Card / Package) | 657g / 927g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
