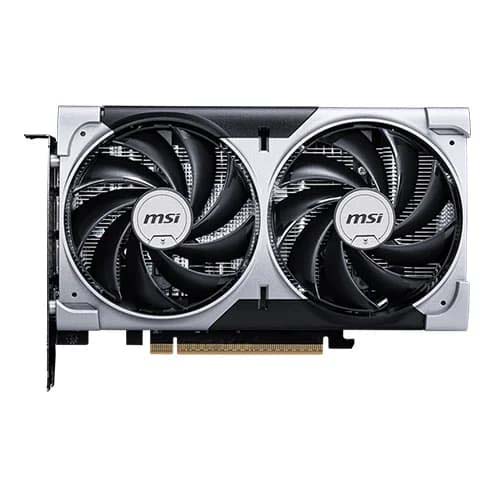

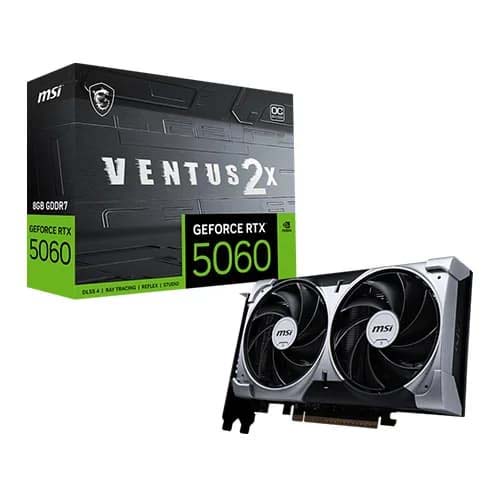

MSI GeForce RTX 5060 Ventus 2X OC 8GB GDDR7 Graphic Card
Overview :
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks: Extreme Performance: 2535 MHz (MSI Center) / Boost: 2527 MHz
- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
- Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
- Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
TORX FAN 5.0
TORX FAN 5.0 enhances airflow and pressure through an improved fan design. Ring arcs link three sets of 22-degree-tilted fan blades, increasing airflow by 23% compared to axial fans.
Heat PIPES
Designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
REINFORCING BACKPLATE
The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is not needed. The fans will automatically start spinning again when the heat is on during gaming.
Specification
| Model | RTX-5060-8G-VENTUS-2X-OC |
| Chipset | NVIDIA GEFORCE |
| GPU | RTX 5060 |
| Engine Clock |
|
| PCI EXPRESS | 5.0 |
| MEMORY CLOCK | 28 Gbps |
| MEMORY SIZE | 8 GB |
| MEMORY INTERFACE | 128-BIT |
| MEMORY TYPE | GDDR7 |
| OpenGL | 4.6 |

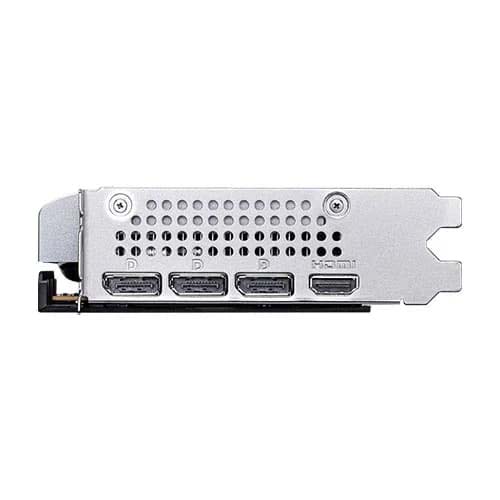

| PORTS | HDMI,DisplayPort |
| DirectX | 12 Ultimate |
| RESOLUTION | 7680 x 4320 |
| COOLER | Dual-Fan |
| Max Display Support | 4 |
| Recommended PSU | 550W |
| GPU CORE (CUDA CORE) | 3840 |
| POWER CONNECTORS | 1 x 8-pin |
| WARRANTY | 3 Years |
