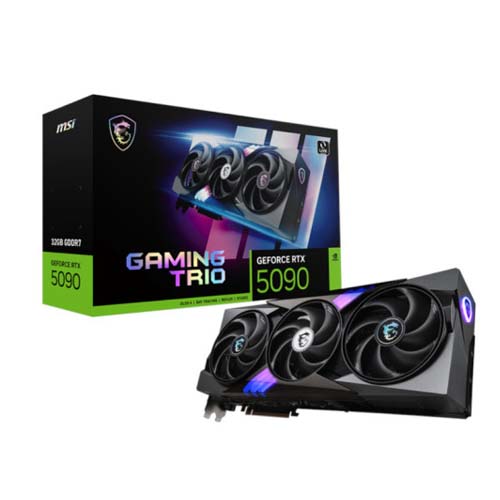

MSI GeForce RTX 5090 Gaming Trio 32GB GDDR7 Graphics Card
Overview :
- Powered by the NVIDIA Blackwell architecture and DLSS 4

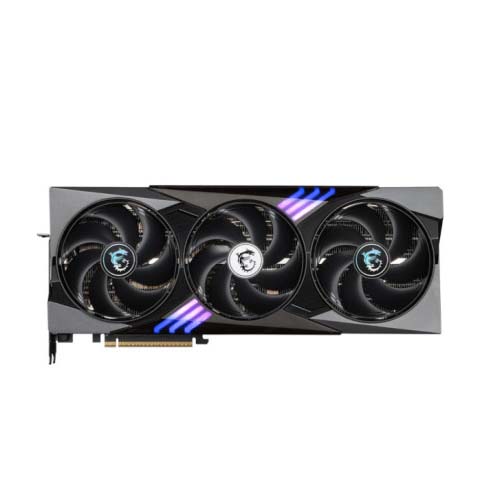

- TRI FROZR 4 Thermal Design: Upgraded fans, airflow control, and thermal design deliver superior cooling and quieter operation.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
- Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specifications
Specification | |
MARKETING NAME | GeForce RTX 5090 32G GAMING TRIO |
MODEL NAME | G5090-32GT |
GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 5090 |
INTERFACE | PCI Express® Gen 5 |
CORE CLOCKS | Extreme Performance: 2422 MHz (MSI Center)
Boost: 2407 MHz (GAMING & SILENT Mode) |
CUDA® CORES | 21760 Units |
MEMORY SPEED | 28 Gbps |
MEMORY | 32GB GDDR7 |
MEMORY BUS | 512-bit |

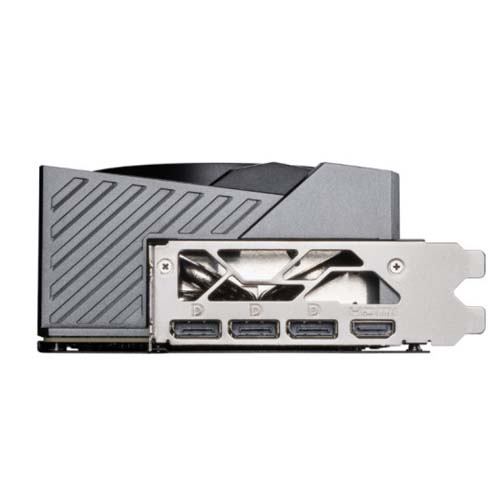

OUTPUT | DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
HDCP SUPPORT | Y |
POWER CONSUMPTION | 575 W |
POWER CONNECTORS | 16-pin x 1 |
RECOMMENDED PSU | 1000 W |
CARD DIMENSION (MM) | 359 x 149 x 70 mm |
WEIGHT (CARD / PACKAGE) | 2119 g / 2735 g |
DIRECTX VERSION SUPPORT | 12 Ultimate |
OPENGL VERSION SUPPORT | 4.6 |
MAXIMUM DISPLAYS | 4 |
G-SYNC® TECHNOLOGY | Y |
DIGITAL MAXIMUM RESOLUTION | 7680×4320 |
WARRANTY | 3 Years |
