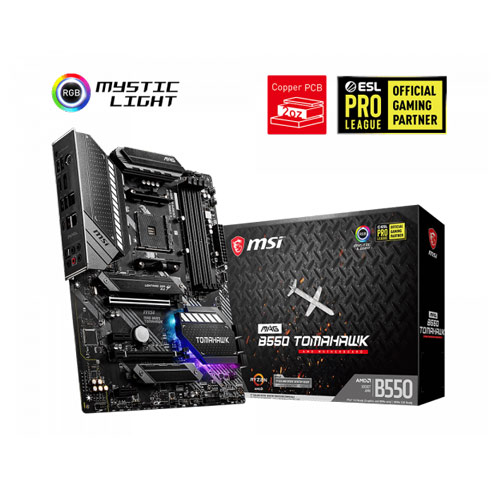

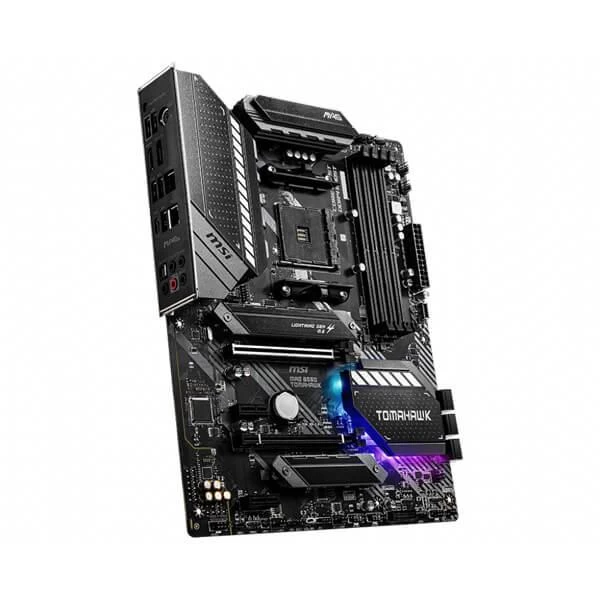

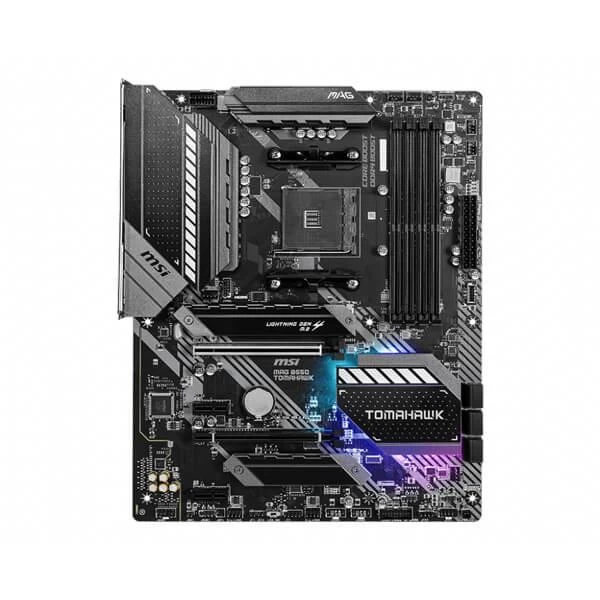

MSI MAG B550 TOMAHAWK AMD Motherboard
Overview :
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4866 (OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 10 2 1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag.
- Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB and RAINBOW LED strip.
- Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports 2-Way AMD Crossfire™
Specification :
Processor | Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors |
Chipset | AMD B550 Chipset |
Memory | 4 x DDR4 memory slots, support up to 128GB |
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866 MHz by A-XMP OC MODE | |
1DPC 1R max speed 4866 MHZ | |
1DPC 2R max speed 3866 MHZ | |
2DPC 1R max speed 4000 MHZ | |
2DPC 2R max speed 3600 MHZ | |
Dual channel memory architecture | |
Supports non-ECC UDIMM memory | |
Supports ECC UDIMM memory (non-ECC mode) | |
Supports un-buffered memory | |
Expansion Slot | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed | |
2x PCIe 3.0 x1 slots | |
1. The supported specification depends on installed processor. | |
2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2. | |
Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
Onboard Graphics | 1x HDMI port, supports a maximum resolution of 4096×2160 @24Hz |
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz | |
Maximum shared memory of 2048 MB | |
Storage | AMD B550 Chipset |
6x SATA 6Gb/s ports | |
2x M.2 slots (Key M) | |
M2_1 slot (from AMD Processor) | |
Supports PCIe 4.0/ 3.0 x4 | |
Supports SATA 6Gb/s | |
Supports 2242/ 2260/ 2280/ 22110 storage devices | |
M2_2 slot (from AMD B550 chipset) | |
Supports PCIe 3.0×4 | |
Supports 2242/ 2260/ 2280 storage devices | |
1. The supported specification depends on installed processor. | |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
USB | AMD B550 Chipset |
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
AMD Processor | |
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
Audio | Realtek® ALC1200 Codec |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
1x Realtek® RTL8111H 1Gbps LAN controller | |
Internal connectors | x 24-pin ATX main power connector |
1x 8-pin ATX 12V power connector | |
6x SATA 6Gb/s connectors | |
2x M.2 slots (M-Key) | |
1x USB 3.2 Gen 1 5Gbps Type-C port | |
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
1x 4-pin CPU fan connector | |
1x 4-pin water-pump fan connector | |
6x 4-pin system fan connectors | |
1x Front panel audio connector | |
2x System panel connectors | |
1x Chassis Intrusion connector | |
2x 4-pin RGB LED connectors | |
2x 3-pin RAINBOW LED connectors | |
1x TPM module connector | |
1x Clear CMOS jumper | |

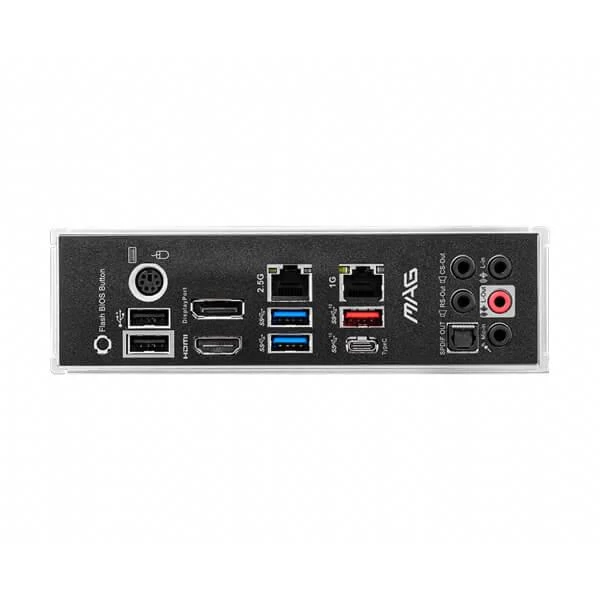

Back panel ports | PS/2 Combo Port |
DisplayPort | |
2.5G LAN Port | |
1G LAN Port | |
HD Audio Connectors | |
Flash BIOS Button | |
USB 2.0 Port | |
HDMI Port | |
USB 3.2 Gen 1 5Gbps (Type-A) | |
USB 3.2 Gen 2 10Gbps (Type-A Type-C) | |
Optical S/PDIF OUT | |
Dimensions | ATX Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
Mounting | 9 mounting holes |
Operating System | Support for Windows® 10 64-bit |
Warranty | 3 Years |
