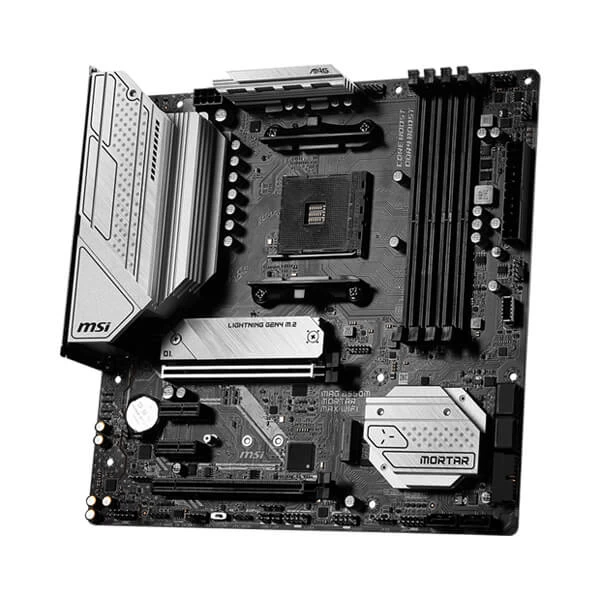

MSI MAG B550M Mortar MAX WIFI AMD Motherboard
Overview :
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 Gen 2
- Premium Thermal Solution: Extended Heatsink Design with additional choke thermal pad rated for 7W/mk and PCB with 2oz thickened copper are built for high performance system and non-stop gaming experience.
- Enhanced Power Design: 8+2+1 Duet Rail Power System, Digital PWM, Core Boost, DDR4 Boost.
- 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience.
- Multi-GPU: With Steel Armor PCI-E slots. Supports AMD Crossfire™
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 M.2
Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed.
FAST AND FUTURE-READY STORAGE
MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps.
Specification :
Processor | Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors |
Support Socket AM4 | |
Chipset | AMD B550 Chipset |
Memory | 4x DDR4 memory slots, support up to 128GB |
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC | |
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE | |
1DPC 1R max speed 4400 MHZ | |
1DPC 2R max speed 3733 MHZ | |
2DPC 1R max speed 3866 MHZ | |
2DPC 2R max speed 3466 MHZ | |
Dual channel memory architecture | |
Supports non-ECC UDIMM memory | |
Supports ECC UDIMM memory (non-ECC mode) | |
Supports un-buffered memory | |
Expansion Slot | 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) |
1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode | |
2x PCIe 3.0 x1 slots | |
Multi-GPU | Supports 2-Way AMD CrossFire™ Technology |
Onboard Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz |
Support HDCP 1.4 & 2.3 | |
1x DisplayPort, supports a maximum resolution of 4096×2160 @60Hz | |
Maximum shared memory of 16 GB | |
Storage | AMD B550 Chipset |
6x SATA 6Gb/s ports | |
2x M.2 slots (Key M) | |
M2_1 slot (from AMD processor) | |
Supports PCIe 4.0/ 3.0 x4 | |
Supports SATA 6Gb/s | |
Supports 2242/ 2260/ 2280 storage devices | |
M2_2 slot (from AMD B550 chipset) | |
Supports PCIe 3.0×4 | |
Supports 2242/ 2260/ 2280 storage devices | |
RAID | AMD B550 Chipset |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
USB | AMD B550 Chipset |
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) | |
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) | |
AMD Processor | |
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) | |
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel | |
Audio | Realtek® ALC1220P Codec |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
LAN | 1x Realtek® RTL8125B 2.5Gbps LAN controller |
Wireless LAN & Bluetooth® | AMD® Wi-Fi 6E |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX | |
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports Bluetooth® 5. | |
Internal connectors | 1x 24-pin ATX main power connector |
1x 8-pin ATX 12V power connector | |
6x SATA 6Gb/s connectors | |
2x M.2 slots (M-Key) | |
1x USB 3.2 Gen 1 5Gbps Type-C port | |
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
1x 4-pin CPU fan connector | |
1x 4-pin water-pump fan connector | |
3x 4-pin system fan connectors | |
1x Front panel audio connector | |
2x System panel connectors | |
1x Chassis Intrusion connector | |
1x 4-pin RGB LED connector | |
2x 3-pin RAINBOW LED connectors | |
1xTPM module connector | |
1x Clear CMOS jumper | |

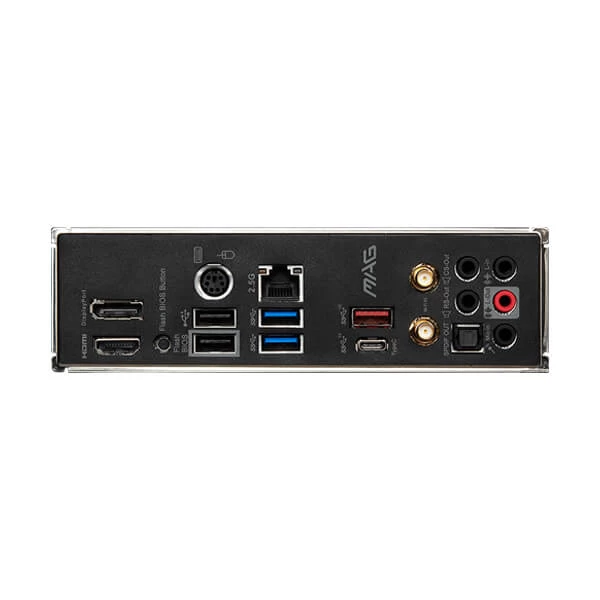

Back panel ports | DisplayPort 1.4 |
PS/2 Combo Port | |
2.5G LAN Port | |
USB 3.2 Gen 2 10Gbps Type-A | |
Wi-Fi / Bluetooth Antenna | |
HD Audio Connectors | |
HDMI 2.1 Port | |
Flash BIOS Button | |
USB 2.0 Port | |
USB 3.2 Gen 1 5Gbps Type-A | |
USB 3.2 Gen 2 10Gbps Type-C | |
Optical S/PDIF OUT | |
Dimensions | Micro-ATX Form Factor |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
Mounting | 8 mounting holes |
Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Warranty | 3 Years |
