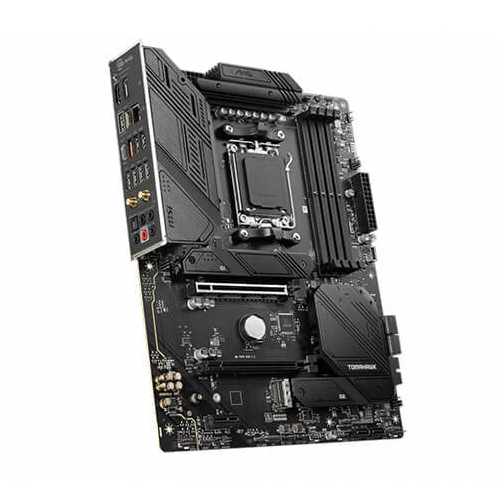

MSI MAG B650 Tomahawk WIFI Motherboard MAG-B650-TOMAHAWK-WIFI
Overview :
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6400+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification :
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz | |
| Onboard Graphics | 1x HDMI |
| 1x DisplayPort Support HDMITM 2.1 with HDR | |
| maximum resolution of 4K 60Hz Support DP 1.4 maximum resolution of 8K 60Hz | |
| EXPANSION SLOT | 2x PCI-E x16 slot |
| Support x16/ x4 | |
| 1x PCI-E x1 slot | |
| PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) | |
| PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) | |
| Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , |
| supports 2280/2260 devices M.2_2 (From CPU) | |
| supports up to PCIe 4.0 x4 | |
| supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 | |
| supports 2280/2260 devices 6x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| LAN | Realtek® RTL8125B 2.5Gbps LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, | |
| 40MHz, | |
| 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2 | |
| Audio | Realtek® ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | ATX 243.84mmx304.8mm |
| Warranty | 3 Years |
