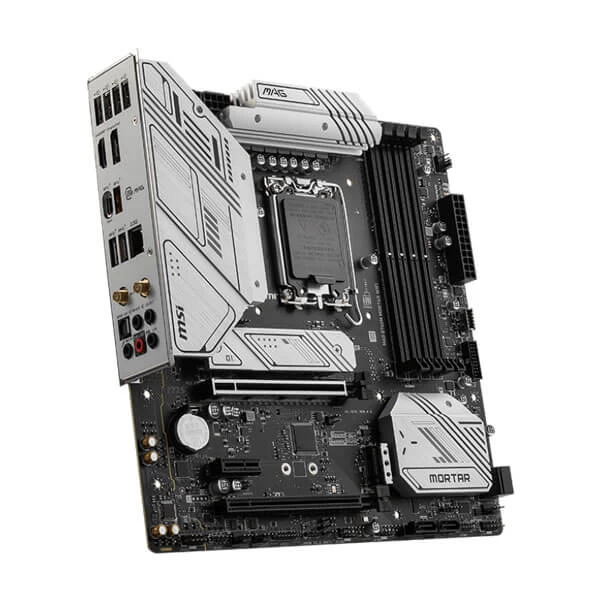

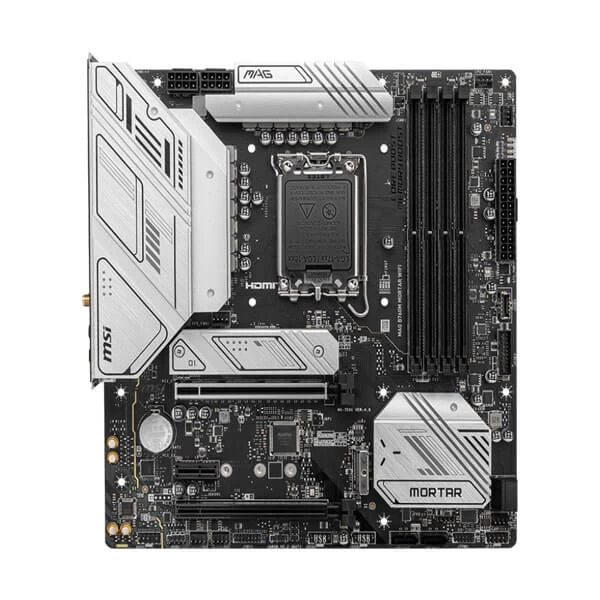

MSI MAG B760M MORTAR WIFI DDR5 Micro ATX Motherboard
Overview :Â
Lightning Gen 5 – Latest PCIe 5.0 solution with a bandwidth of up to 128GB/s Maximum transfer speed.
OC Engine – Along with the clock generator, OC Engine releases technology Maximum power of the CPU.
6-Layer PCB with 2oz Thickened Copper – An enhanced PCB design provides superior performance and long-lasting system stability without compromise.
Wi-Fi 6E – The latest wireless solutions support the 6GHz spectrum, MU-MIMO, and BSS color technology, providing speeds of up to 2400Mbps.
2.5G Network Solution – Features premium 2.5G LAN to provide a better network experience.
Lightning USB 20G – Built-in USB 3.2 Gen 2×2 port, offering 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
M.2 Shield FROZR – The built-in M.2 thermal solution is reinforced. M.2 secures the SSD to prevent throttling to run faster.
Memory Boost – Advanced technology to provide pure data signal for optimum Performance, stability, and compatibility.
Audio Boost – Reward your ears with the studio-grade sound quality for a maximum Immersive audio experience.
Core Boost – With a premium layout and fully digital power design to support Providing more cores and better performance.
Latest DDR5 Memory – A huge step up in DDR performance with the latest DDR5 memory and MSI Memory Boost technology.
Specification :Â
| Model | Â MAG B760M MORTAR WIFI |
| Â Chipset | Â INTEL B760 |
| Â CPU | Â Supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors for LGA1700 |
| Â Memory | Â 4 x DDR5, Maximum Memory Capacity 128GB |
| Memory Support 7000 (OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 7000 MHz | |
| • 1DPC 2R Max speed up to 6600 MHz | |
| • 2DPC 1R Max speed up to 6400 MHz | |
| • 2DPC 2R Max speed up to 5600 MHz | |
| Supports DualChannel mode | |
| Supports nonECC, unbuffered memory | |
| Supports Intel Extreme Memory Profile | |
| Â Onboard Graphics | Â 1 x HDMI |
| 1 x DisplayPort | |
| Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |
| Support DP 1.4, the maximum resolution of 4K 60Hz* | |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Â Storage | Â 2 x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices | |
| 4 x SATA 6G port | |
| Â Expansion Slot | 2x PCIE x16 slot |
| Supports x16/x4 | |
| 1x PCIE x1 slot | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
| PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
| Â USB | Â 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 3x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| Â Wireless/Bluetooth | Â Intel WiFi 6E |
| The Wireless module is preinstalled in the M.2 (KeyE) slot | |
| Supports MUMIMO TX/RX, 2.4GHz / 5GHz / 6GHz*Â (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth 5.3, FIPS, FISMA | |
| * WiFi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
| Â Audio | Â Realtek ALC897 Codec |
| 7.1Channel USB HighPerformance Audio | |
| Supports S/PDIF output | |
| Â LAN | Â Realtek 2.5Gbps LAN |
| Â LED Feature | Â 4 x EZ Debug LED |
| Â Internal I/O Connectors | Â 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 4x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x TBT connector (JTBT, supports RTD3) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| Â Back Panel Ports | Â USB 2.0 |
| DisplayPort 1.4 | |
| USB 3.2 Gen 2 10Gbps TypeA | |
| 2.5G LAN Port | |
| WiFi / Bluetooth Antenna | |
| HD Audio Connectors | |
| HDMI 2.1 Port | |
| USB 3.2 Gen 2×2 20Gbps TypeC | |
| Optical S/PDIF OUT | |
| Â RAID | Â Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices |
| Â Operating System | Â Support for Windows 11 64bit, Windows 10 64bit |
| Â Form Factor | Â mATX |
| Â Dimensions | Â 243.84 x 243.84 (mm) |
| Â Package Contains | Â MAG B760M MORTAR WIFI |
| EZ M.2 CLIP | |
| SATA Cable | |
| WiFi Antenna | |
| Cable Stickers | |
| M.2 Screw/Standoff Set | |
| European Union Regulatory Notice | |
| Quick Installation Guide |
