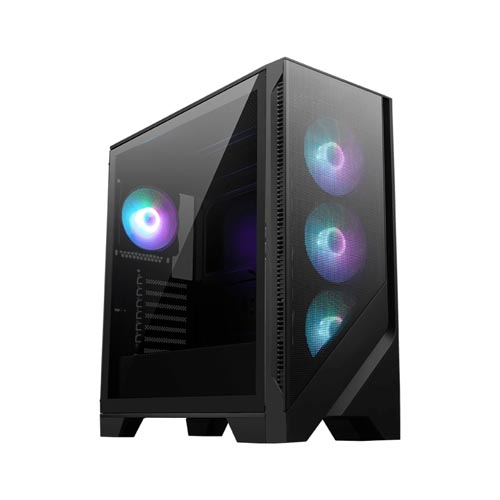

MSI MAG FORGE 320R AIRFLOW Mid Tower
Overview :
- Supports up to 360 mm AIO liquid cooler and large 40 series GPU.
- Supports up to 11 x system fans configuration, providing ventilation and stable performance to the whole system.
- Built-in ARGB fans and control board, providing striking lighting and vivid lighting effects.
- Tempered Glass Side Panel displays RGB lighting effects.
- The Magnetic Dust Filter on the top vents being easily remove for cleaning.
- DIY Friendly cables make your DIY process easier and create more possibilities to your system.
- LED Switch button provides intuitively control & 9 lighting effects.
Specification :
| PRODUCT NAME | MAG FORGE 320R AIRFLOW |
| CASE FORM FACTOR | Mid Tower |
| MOTHERBOARD FORM FACTOR SUPPORT | ATX / Micro-ATX / Mini-ITX |
| I/O PORTS | 2 x USB 3.2 Gen 1 Type-A |
| 1 x Audio-out | |
| 1 x Mic-in | |
| 1 x LED Switch | |
| DRIVE MOUNT SUPPORT | 1 x 2.5″ |
| 2 x 2.5″ / 3.5″ | |
| EXPANSION SLOTS | 7 |
| MAXIMUM GPU LENGTH | 390 mm / 15.35 inches |
| MAXIMUM CPU COOLER HEIGHT | 160 mm / 6.29 inches |
| POWER SUPPLY SUPPORT | ATX |
| MAXIMUM PSU LENGTH | 200 mm / 7.87 inches (without 2.5″/3.5″ HDD tray installation) |
| FAN SIZE SUPPORT | Front: 3 x 120 mm / 2 x 140 mm |
| Top: 3 x 120 mm / 2 x 140 mm | |
| Rear: 1 x 120 mm | |
| Side: 2 x 120 mm | |
| PSU Shroud: 2 x 120 mm | |
| PRE-INSTALLED FAN SIZE | Front: 3 x 120 mm |
| Rear: 1 x 120 mm | |
| PRE-INSTALLED FAN TYPE | Front: 3 x ARGB Fan |
| Rear: 1 x ARGB Fan | |
| RADIATOR SIZE SUPPORT | Front: 120 / 140 / 240 mm |
| Top: 120 / 240 / 280 / 360 mm | |
| Rear: 120 mm | |
| DIMENSIONS (DXWXH) | 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches |
| NET WEIGHT | 7.05 kg / 15.54lbs |
| GROSS WEIGHT | 8.35 kg / 18.41lbs |
