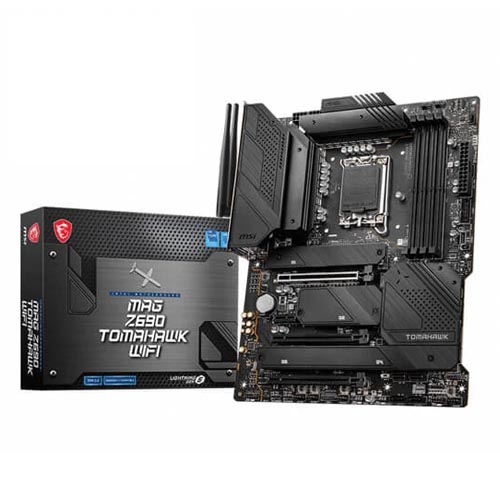

MSI MAG Z690 TOMAHAWK WIFI Motherboard
Overview :
- Supports DDR5 Memory, up to 6400(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™
Specification :
Processor | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors |
1 Processor socket LGA1700 | |
Please go to msi.com to get the newest support status as new processors are released. | |
Chipset | Intel® Z690 Chipset |
Memory | 4x DDR5 memory slots, supporting up to 128GB |
Supports 1R 4800 MHz (by JEDEC & POR) | |
Max overclocking frequency: | |
1DPC 1R Max speed up to 6400 MHz | |
1DPC 2R Max speed up to 5400 MHz | |
2DPC 1R Max speed up to 4000 MHz | |
2DPC 2R Max speed up to 4000 MHz | |
Supports Intel® XMP 3.0 OC | |
Supports Dual Controller Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Please refer to www.msi.com for more information on compatible memory. See supported memory | |
Expansion Slot | 3x PCIe x16 slots |
PCI_E1 (From CPU) | |
Support up to PCIe 5.0 x16 | |
PCI_E3 (From Z690 chipset) | |
Support up to PCIe 3.0 x4 | |
PCI_E4 (From Z690 chipset) | |
Support up to PCIe 3.0 x1 | |
1x PCIe 3.0 x1 slot (From Z690 chipset) | |
Multi-GPU | Supports AMD® CrossFire™ Technology |
Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz |
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz | |
Available only on processors featuring integrated graphics. | |
Graphics specifications may vary depending on the CPU installed. | |
Storage | 6x SATA 6Gb/s ports (From Z690 chipset) |
4x M.2 slots (Key M) | |
M2_1 slot (From CPU) | |
Supports up to PCIe 4.0 x4 | |
Supports 2242/ 2260/ 2280/ 22110 storage devices | |
M2_2 slot (From Z690 chipset) | |
Supports up to PCIe 4.0 x4 | |
Supports 2242/ 2260/ 2280 storage devices | |
M2_3 slot (From Z690 chipset) | |
Supports up to PCIe 3.0 x4 | |
Supports up to SATA 6Gb/s | |
Supports 2242/ 2260/ 2280 storage devices | |
M2_4 slot (From Z690 chipset) | |
Supports up to PCIe 4.0 x4 | |
Supports up to SATA 6Gb/s | |
Supports 2242/ 2260/ 2280 storage devices | |
Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset | |
Supports Intel® Smart Response Technology for Intel Core™ processors | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices | |
USB | Intel® Z690 Chipset |
1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel | |
4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) | |
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) | |
1x USB 2.0 Type-A port on the back panel | |
Hub-GL850G | |
5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors) | |
Audio | Realtek® ALC4080 Codec |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
LAN | 1x Intel® I225V 2.5Gbps LAN controller |
Wireless LAN & Bluetooth® | Intel® Wi-Fi 6E |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports Bluetooth® 5.2 | |
Internal connectors | 1x 24-pin ATX main power connector |
2x 8-pin ATX 12V power connectors | |
6x SATA 6Gb/s connectors | |
4x M.2 slots (M-Key) | |
1x USB 3.2 Gen 2 10Gbps Type-C port | |
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) | |
2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) | |
1x 4-pin CPU fan connector | |
1x 4-pin water-pump fan connector | |
6x 4-pin system fan connectors | |
1x Front panel audio connector | |
2x System panel connectors | |
1x Chassis Intrusion connector | |
1x TPM module connector | |
1x Clear CMOS jumper | |
1x TBT connector (supports RTD3) | |
1x Tuning Controller connector | |
LED Feature | 1x EZ LED Control switch |
1x 4-pin RGB LED connectors | |
3x 3-pin RAINBOW LED connectors | |
4x EZ Debug LED | |
Back panel ports | DisplayPort 1.4 |
USB 2.0 Port | |
USB 3.2 Gen 2 10Gbps Type-A | |
2.5G LAN Port | |
Wi-Fi / Bluetooth Antenna | |
HD Audio Connectors | |
HDMI 2.1 Port | |
Flash BIOS Button | |
USB 3.2 Gen 1 5Gbps Type-A | |
USB 3.2 Gen 2 10Gbps Type-A | |
USB 3.2 Gen 2×2 20Gbps | |
Type-C Optical S/PDIF OUT | |
Dimensions | ATX Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
Warranty | 3 Years |
