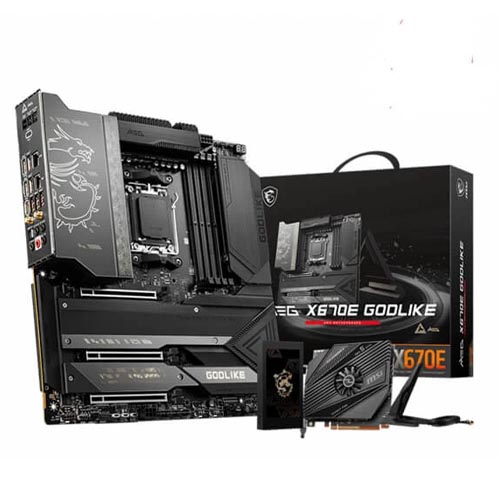

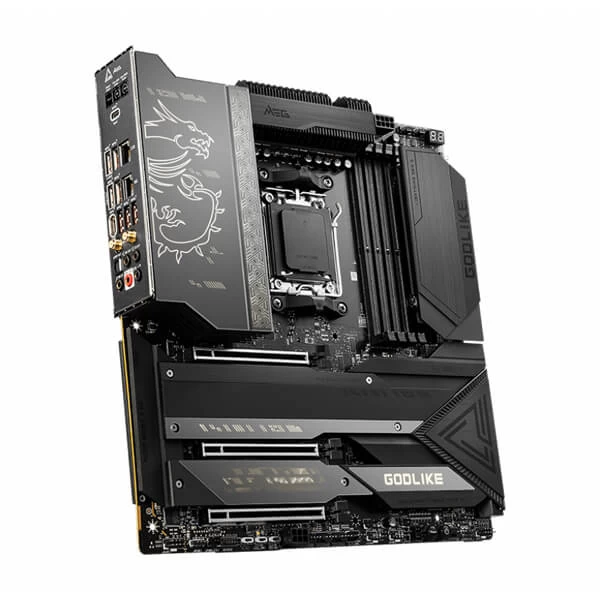

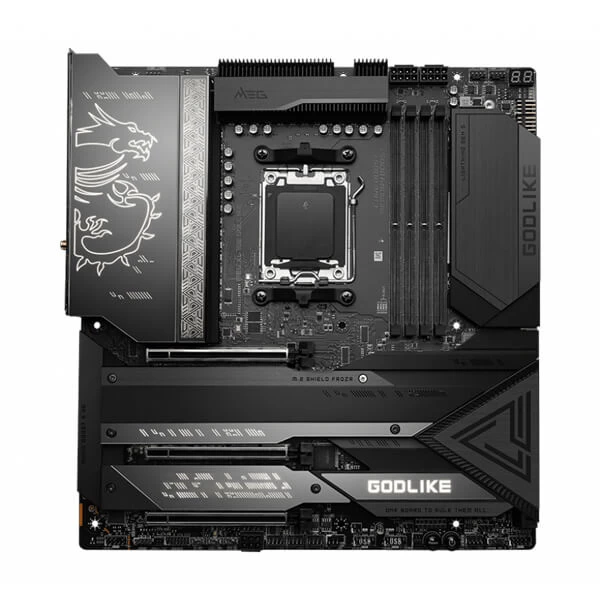

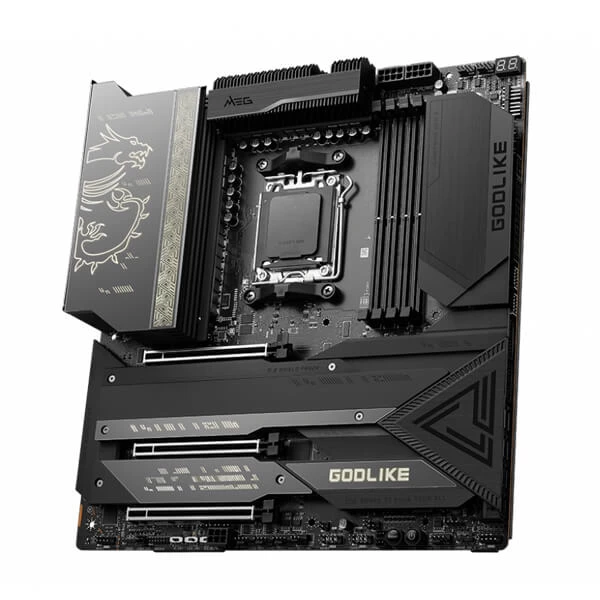

MSI MEG X670E Godlike WIFI DDR5 AMD Motherboard
Overview :
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6666+MHz (OC)
- M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
- Extreme Power Design: 24+2+1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
- Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery. - DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. - Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Specification :
| Chipset | AMD X670 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6666+(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 6666+ MHz | |
| • 1DPC 2R Max speed up to 6000+ MHz | |
| • 2DPC 1R Max speed up to 6400+ MHz | |
| • 2DPC 2R Max speed up to 4000+ MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports AMD EXPO | |
| EXPANSION SLOT | 3x PCI-E x16 slot |
| Supports x16/x0/x4, x8/x8/x4 | |
| PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
| PCI_E2 PCIe 5.0 supports up to x8 (From CPU) | |
| PCI_E3 PCIe 5.0 supports up to x4 (From CPU) | |
| Multi-GPU | Supports AMD MULTI-GPU |
| Storage | 4x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
| M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
| 8x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Front) | |
| 7x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| 2x USB 3.2 Gen2x2 Type C (Rear) | |
| 1x USB 3.2 Gen2x2 Type C (Front) | |
| LAN | Marvell® AQC113-B1-C 10Gbps LAN |
| Intel® I225V 2.5Gbps LAN | |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX | |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.2 | |
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA |
| 7.1-Channel High Definition Audio | |
| Supports S/PDIF output | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Internal I/O | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x Power Connector(PCIE_PWR 4pin or 6 pin) | |
| 1x Front Type-C Quick Charge Connector(PD_PWR1) | |
| 1x CPU Fan | |
| 2x Pump Fan | |
| 6x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Water Flow connector | |
| 1x Front Audio (JAUD) | |
| 2x Thermal Sensor connectors(T_SEN) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| 1x USB 3.2 Gen 2×2 Type C | |
| V-check point | |
| LED FEATURE | 1x EZ LED Control switch |
| 4x EZ Debug LED | |
| 1x 2-Digit Debug Code LED | |

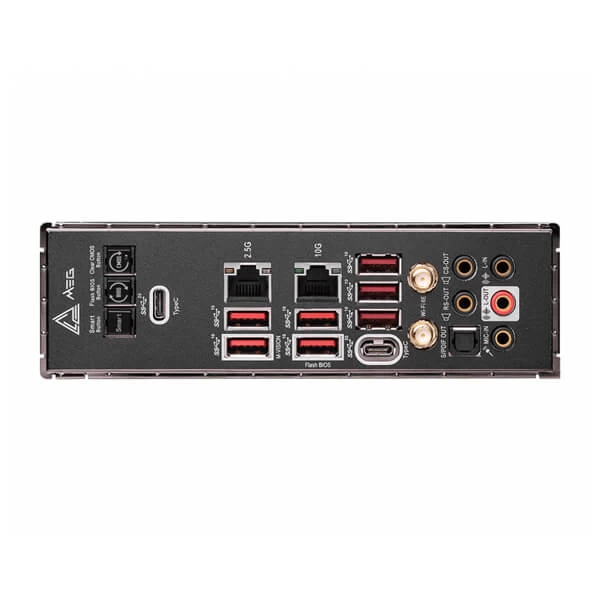

| BACK PANEL PORTS | Clear CMOS Button |
| Flash BIOS Button | |
| 2.5G LAN | |
| 10G Super LAN | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Wi-Fi / Bluetooth | |
| HD Audio Connectors | |
| Smart Button | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| Optical S/PDIF-Out | |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | E-ATX |
| 288mmx304.8mm | |
| Warranty | 3 Years |
