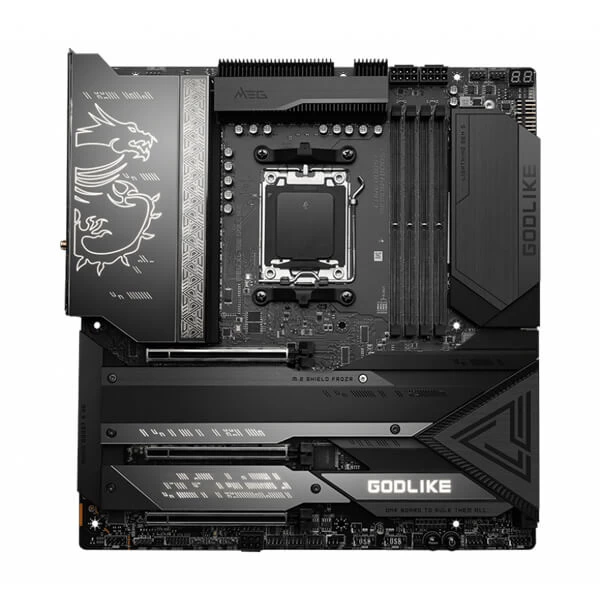

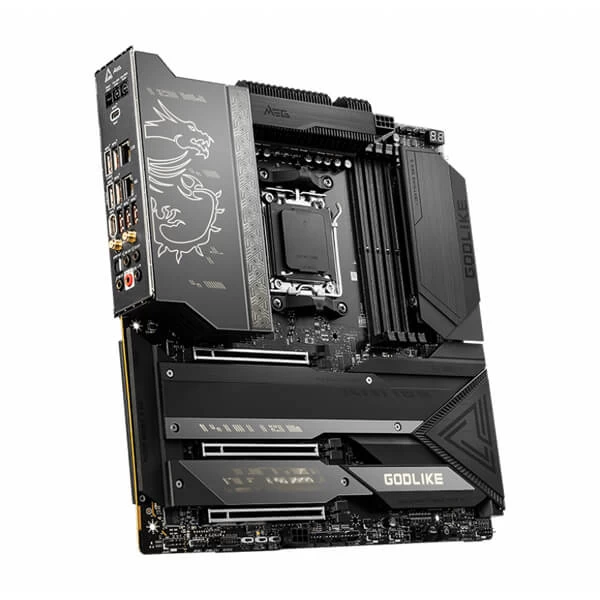

MSI MEG X670E Godlike WIFI Motherboard MEG-X670E-GODLIKE
Overviews
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6666 MHz (OC)
M-Vision Dashboard: The Touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
Extreme Power Design: 24 2 1 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
Maximum 6 x M.2 Connectors: Onboard and exclusive M.2 XPANDER-Z GEN5 DUAL PCI-Express card offer totally sextuple M.2 connectors for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 3.2 Gen 2×2 20G with 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic M.2 Shield Frozr, Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor
10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Specifications
Chipset | AMD X670 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
Socket AM5 | |
Memory | 4x DDR5, Maximum Memory Capacity 128GB |
Memory Support DDR5 6666 (OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz | |
Max. overclocking frequency: | |
• 1DPC 1R Max speed up to 6666 MHz | |
• 1DPC 2R Max speed up to 6000 MHz | |
• 2DPC 1R Max speed up to 6400 MHz | |
• 2DPC 2R Max speed up to 4000 MHz | |
Supports Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Supports AMD EXPO | |
EXPANSION SLOT | 3x PCI-E x16 slot |
Supports x16/x0/x4, x8/x8/x4 | |
PCI_E1 PCIe 5.0 supports up to x16 (From CPU) | |
PCI_E2 PCIe 5.0 supports up to x8 (From CPU) | |
PCI_E3 PCIe 5.0 supports up to x4 (From CPU) | |
Multi-GPU | Supports AMD MULTI-GPU |
Storage | 4x M.2 slot |
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices | |
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
8x SATA 6G port | |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices | |
USB | 4x USB 2.0 (Front) |
4x USB 3.2 Gen1 Type A (Front) | |
7x USB 3.2 Gen2 Type A (Rear) | |
1x USB 3.2 Gen2 Type C (Front) | |
2x USB 3.2 Gen2x2 Type C (Rear) | |
1x USB 3.2 Gen2x2 Type C (Front) | |
LAN | Marvell® AQC113-B1-C 10Gbps LAN |
Intel® I225V 2.5Gbps LAN | |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX | |
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports Bluetooth® 5.2 | |
Audio | Realtek® ALC4082 Codec ESS ES9280AQ Combo DAC/HPA |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
Supports up to 32-Bit/384 kHz playback on front panel | |
Internal I/O | 1x Power Connector(ATX_PWR) |
2x Power Connector(CPU_PWR) | |
1x Power Connector(PCIE_PWR 4pin or 6 pin) | |
1x Front Type-C Quick Charge Connector(PD_PWR1) | |
1x CPU Fan | |
2x Pump Fan | |
6x System Fan | |
2x Front Panel (JFP) | |
1x Chassis Intrusion (JCI) | |
1x Water Flow connector | |
1x Front Audio (JAUD) | |
2x Thermal Sensor connectors(T_SEN) | |
1x Tuning Controller connector(JDASH) | |
3x Addressable V2 RGB LED connector (JARGB_V2) | |
1x RGB LED connector(JRGB) | |
1x TPM pin header(Support TPM 2.0) | |
4x USB 2.0 | |
4x USB 3.2 Gen1 Type A | |
1x USB 3.2 Gen2 Type C | |
1x USB 3.2 Gen 2×2 Type C | |
V-check point | |
LED FEATURE | 1x EZ LED Control switch |
4x EZ Debug LED | |
1x 2-Digit Debug Code LED | |
BACK PANEL PORTS | Clear CMOS Button |
Flash BIOS Button | |
2.5G LAN | |
10G Super LAN | |
USB 3.2 Gen 2 10Gbps (Type-A) | |
Wi-Fi / Bluetooth | |
HD Audio Connectors | |
Smart Button | |
USB 3.2 Gen 2×2 20Gbps (Type-C) | |
USB 3.2 Gen 2 10Gbps (Type-A) | |
USB 3.2 Gen 2 10Gbps (Type-A) | |
USB 3.2 Gen 2×2 20Gbps (Type-C) | |
Optical S/PDIF-Out | |
OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
PCB Dimension | E-ATX |
288mmx304.8mm | |
Warranty | 3 Years |
