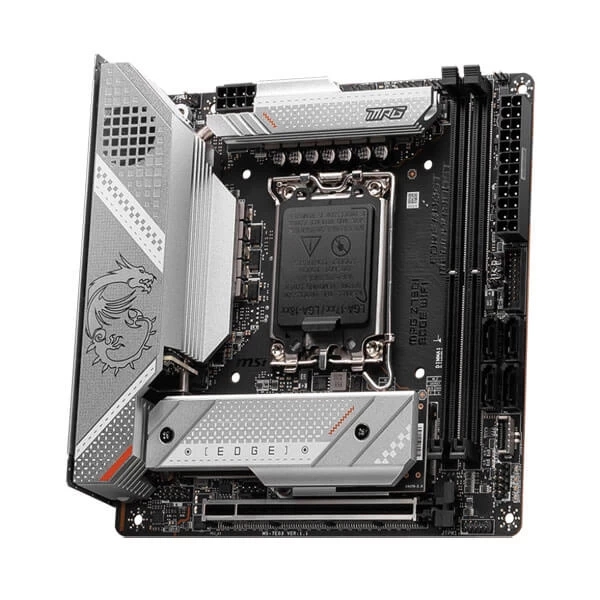

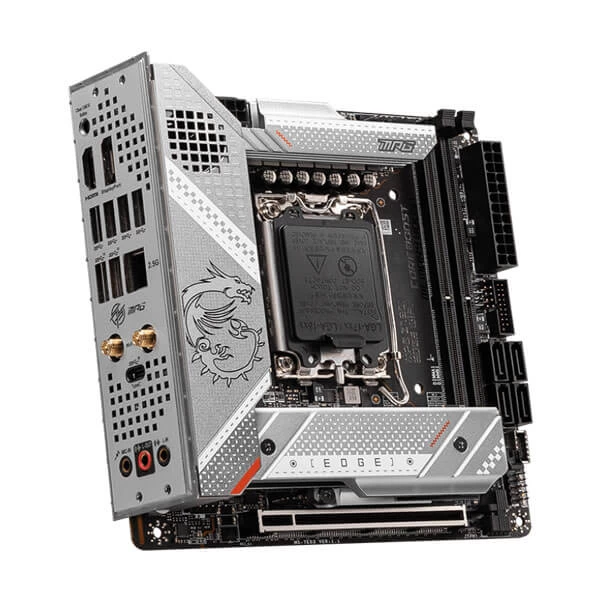

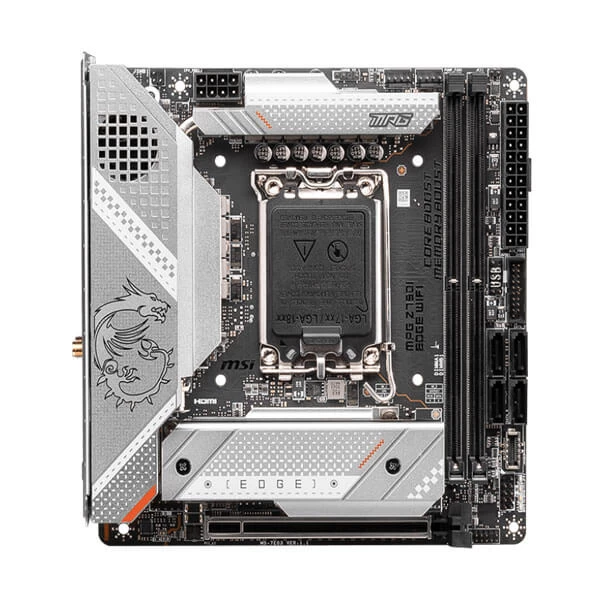

MSI MPG Z790I Edge WIFI DDR5 Intel Motherboard
Overview :
- Supports 14th /13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 8000+(OC) MHz
- Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
- Enhanced Power Design: Direct 10+1+1 phases power, Core Boost, Memory Boost
- Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 12-layer PCB made by server grade level material
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
Specification :
| Model | MPG Z790I EDGE WIFI |
| Chipset | INTEL Z790 |
| CPU Support | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 | |
| Memory | 2x DDR5, Maximum Memory Capacity 64GB |
| Memory Support 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz | |
| Max. overclocking frequency: | |
| • 1DPC 1R Max speed up to 8000+ MHz | |
| • 1DPC 2R Max speed up to 7200+ MHz | |
| Supports Intel® XMP3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Onboard Graphics | 1x HDMI |
| 1x DisplayPort | |
| Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz | |
| Support DP 1.4, maximum resolution of 4K 60Hz | |
| Slot | 1x PCI-E x16 slot (Qty) |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) | |
| Storage | 3x M.2 (Qty) |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices | |
| M.2_2 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices | |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices | |
| 4x SATA 6G (Qty) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices | |
| USB | 2x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 2x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2x2 Type C (Rear) | |
| 1x USB 3.2 Gen2x2 Type C (Front) | |
| LAN | Intel® 2.5Gbps LAN |
| Wireless Lan & Bluetooth | Intel® Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot | |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps | |
| Supports 802.11 a/ b/ g/ n/ ac/ ax | |
| Supports Bluetooth® 5.3, FIPS, FISMA | |
| Audio | Realtek® ALC4080 Codec |
| 7.1-Channel USB High Performance Audio | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 1x System Fan | |
| 1x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 2x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen 2×2 Type C ports | |
| LED Features | 4x EZ Debug LED |
| Back Panel Ports | Display Port |
| 2.5G LAN | |
| USB 3.2 Gen 2×2 20Gbps (Type-C) | |
| Audio Connectors | |
| Clear CMOS | |
| HDMI™ | |
| USB 3.2 Gen 1 5Gbps (Type-A) | |
| USB 3.2 Gen 2 10Gbps (Type-A) | |
| Wi-Fi / Bluetooth | |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | Mini-ITX |
| 170mmx170mm | |
| Warranty | 3 Years |
