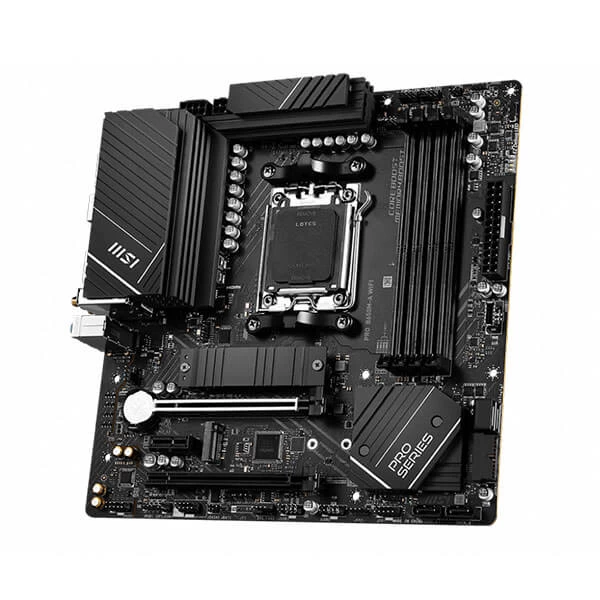

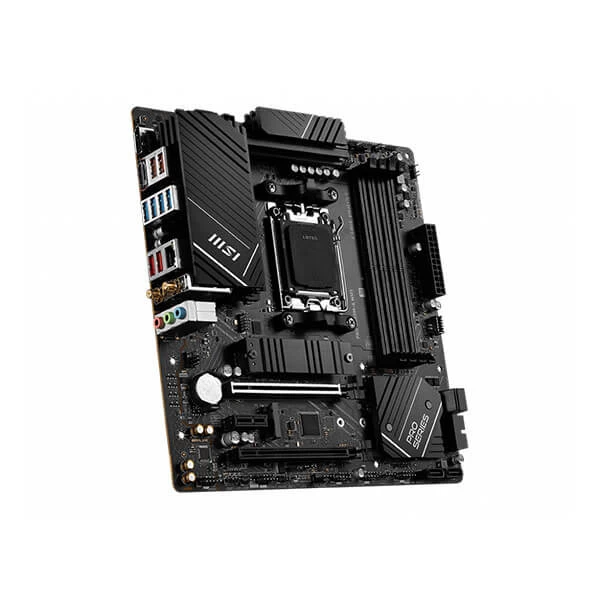

MSI Pro B650M-A WIFI DDR5 AMD Motherboard
Overview :
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 8+2+1 Duet Rail Power System, 8 pin + 4 pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specification :
| Chipset | AMD B650 |
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
| Socket AM5 | |
| Memory | 4x DDR5, |
| Maximum Memory Capacity 128GB | |
| Memory Support DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 6400+ MHz | |
| 1DPC 2R Max speed up to 5800+ MHz | |
| 2DPC 1R Max speed up to 6000+ MHz | |
| 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, | |
| un-buffered memory Supports AMD EXPO | |
| Onboard Graphics | 1x HDMI |
| 1x DisplayPort | |
| Support HDMITM | |
| 2.1,maximum resolution of 4K 60Hz | |
| Supports DP1.4 | |
| maximum resolution of 4K 60Hz | |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| Storage | 2x M.2 slot |
| M.2_1 (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices | |
| M.2_2 (From CPU) supports up to PCIe 4.0 x4 supports 2280/2260 devices 4x SATA 6G port | |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |

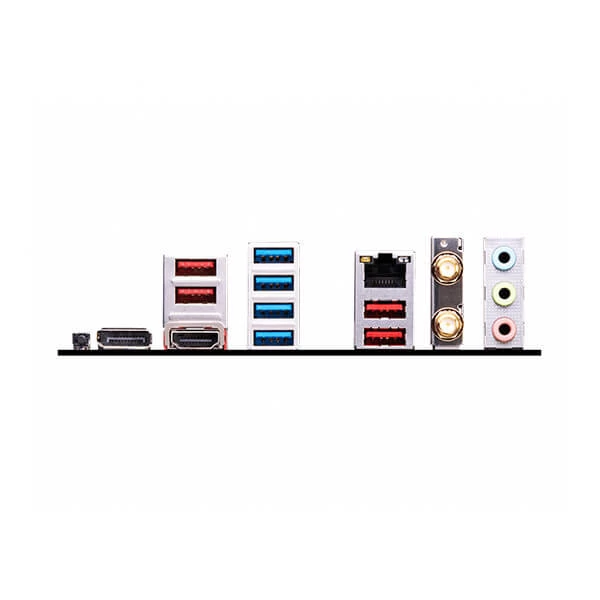

| USB | 4x USB 2.0 (Front) |
| 4x USB 3.2 Gen1 Type A (Rear) | |
| 2x USB 3.2 Gen1 Type A (Front) | |
| 4x USB 3.2 Gen2 Type A (Rear) | |
| 1x USB 3.2 Gen2 Type C (Front) | |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** |
| Audio | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 3x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x Tuning Controller connector(JDASH) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 2x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 2x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen2 Type C | |
| LED FEATURE | 4x EZ Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Dimension | mATX |
| Warranty | 3 Years |
