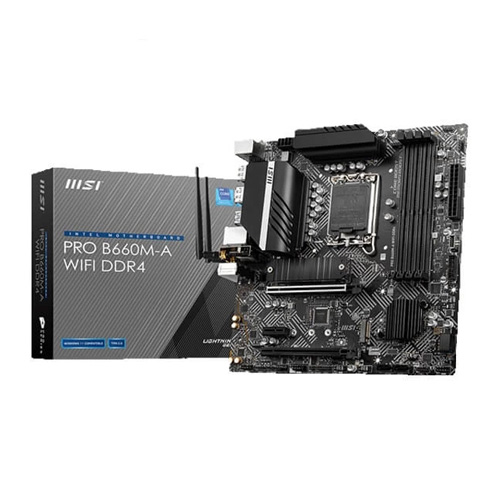

MSI Pro B660M-A WIFI DDR4 Motherboard
Overview :
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 4800 (OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
Specification:
| CPU |
- Supports 12th Gen Intel® Core™ Processors
- Processor socket LGA1700
|
| Chipset |
Intel® B660 Chipset |
| Memory |
- 4x DDR4 memory slots, support up to 128GB 1
- Supports 1R 2133/2666/3200 MHz (by JEDEC & POR)
- Max overclocking frequency:
- 1DPC 1R Max speed up to 4800 MHz
- 1DPC 2R Max speed up to 4000 MHz
- 2DPC 1R Max speed up to 4000 MHz
- 2DPC 2R Max speed up to 3600 MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memoryy
- Supports Intel® Extreme Memory Profile (XMP)
|
| Expansion Slot |
- 2x PCIe x16 slots
- PCI_E1 (From CPU)
- PCI_E3 (From B660 chipset)
- 1x PCIe 3.0 x1 slot (Fom B660 chipset)
|
| Onboard Graphics |
- 2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz
- 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
|
| Multi-GPU |
Supports AMD® CrossFire™ Technology |
| Audio |
|
| Storage |
- 4x SATA 6Gb/s ports (From B660 chipset)
- 2x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (From B660 chipset)
- Supports up to PCIe 4.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Optane™ Memory
- Support Intel® Smart Response Technology for Intel Core™ processors
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN |
1x Realtek® RTL8125BG 2.5Gbps LAN controller |
| Wi-Fi & Bluetooth® |
Intel® Wi-Fi 6
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2
|
| Power Connectors |
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 1x 4-pin ATX 12V power connector
|
| Internal USB Connectors |
- 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset)
- 1x USB 3.2 Gen 1 5Gbps Type-A connector (From ASM1074)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 Type-A connectors (From B660 chipset)
- Supports additional 4 USB 2.0 ports
|
| Fan Connectors |
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 2x 4-pin system fan connectors
|
| System Connectors |
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Tuning Controller connector
- 1x TBT connector (supports RTD3)
- 1x Serial port
|
| Jumpers |
1x Clear CMOS jumper |
| LED Features |
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
|
