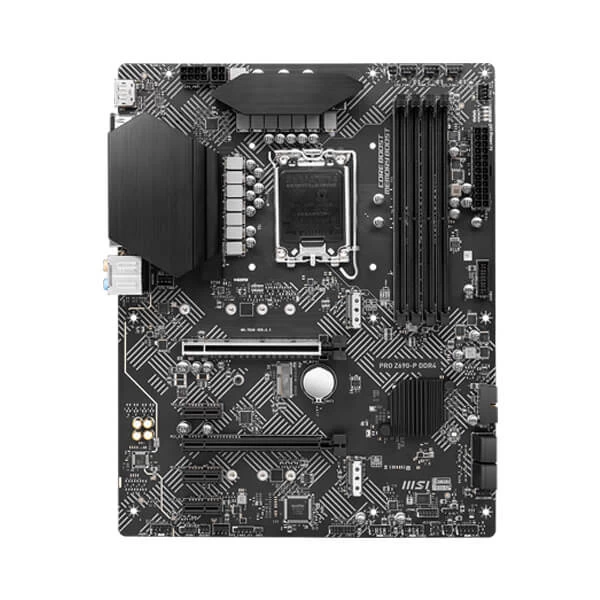

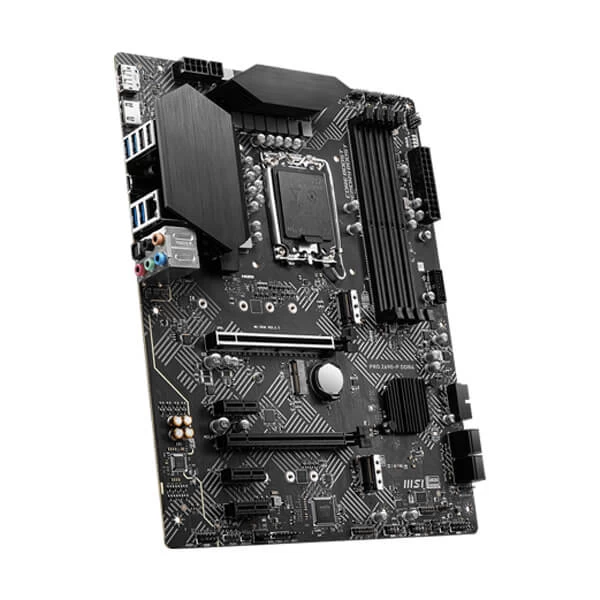

MSI PRO Z690-P DDR4 Motherboard
Overview :
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, up to 5000 (OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and MOSFET thermal pads rated for 7W/mk are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
Specification :
Processor | Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
Processor socket LGA1700 | |
Please go to msi.com to get the newest support status as new processors are released. | |
Chipset | Intel® Z690 Chipset |
Memory | 4x DDR4 memory slots, support up to 128GB |
1 Supports 2133/ 2666/ 3200 MHz (by JEDEC & POR) | |
Max overclocking frequency: | |
1DPC 1R Max speed up to 5000 MHz | |
1DPC 2R Max speed up to 4600 MHz | |
2DPC 1R Max speed up to 4400 MHz | |
2DPC 2R Max speed up to 4000 MHz | |
Supports Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Supports Intel® Extreme Memory Profile (XMP) | |
Please refer www.msi.com for more information on compatible memory | |
Expansion Slot | 2x PCIe x16 slots |
PCI_E1 slot (From CPU) | |
Support PCIe 5.0 x16 | |
PCI_E3 (From Z690 chipset) | |
Support PCIe 3.0 x4 | |
3x PCIe 3.0 x1 slots (Fom Z690 chipset) | |
1x M.2 slot with E key for Intel® Wireless-AX CNVi and PCIe WiFi module | |
Onboard Graphics | 1x HDMI 1.4b with HDR port, supports a maximum resolution of 4K 30Hz |
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz | |
Available only on processors featuring integrated graphics. | |
Graphics specifications may vary depending on the CPU installed. | |
Multi-GPU | Supports AMD CrossFire™ Technology |
Storage | 4x SATA 6Gb/s ports (From Z690 chipset) |
2x M.2 slots (Key M) | |
M2_1 slot (From CPU) | |
Supports PCIe 4.0 x4 | |
Supports 2242/ 2260/ 2280/ 22110 storage devices | |
M2_2 slot (From Z690 chipset) | |
Supports PCIe 4.0 x4 | |
Supports SATA 6Gb/s | |
Supports 2242/ 2260/ 2280 storage devices | |
Supports Intel® Optane™ Memory | |
RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
USB | Intel® Z690 Chipset |
8x USB 3.2 Gen 1 5Gbps ports (4 Type-A port on the back panel and 4 ports available through the internal USB connectors) | |
6x USB 2.0 ports (2 Type-A port on the back panel and 4 ports available through the internal USB connectors) | |
1x USB 3.2 Gen 2×2 20Gbps Type-C port on the back panel | |
Audio | Realtek®ALC897 Codec |
7.1-Channel High Definition Audio | |
Supports S/PDIF output | |
LAN | 1x Realtek® RTL8125BG 2.5Gbps LAN controller |
Internal connectors | 1x 24-pin ATX main power connector |
1x 8-pin ATX 12V power connector | |
1x 4-pin ATX 12V power connector | |
4x SATA 6Gb/s connectors | |
2x M.2 slots (M-Key) | |
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) | |
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) | |
1x 4-pin CPU fan connector | |
1x 4-pin water-pump fan connector | |
4x 4-pin system fan connectors | |
1x Front panel audio connector | |
2x System panel connectors | |
1x Chassis Intrusion connector | |
1x TPM module connector | |
1x Clear CMOS jumper | |
1x TBT connector (Supports RTD3) | |
LED FEATURE | 1x 4-pin RGB LED connector |
1x 3-pin RAINBOW LED connector | |
4x EZ Debug LED | |
Back panel ports | DisplayPort |
HDMI | |
USB 2.0 | |
LAN port | |
Audio Connectors | |
USB 3.2 Gen 1 5Gbps Type-A | |
USB 3.2 Gen 2×2 20Gbps Type-C | |
USB 3.2 Gen 1 5Gbps Type-A | |
Optical S/PDIF Out | |
Dimensions | ATX Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) | |
Warranty | 3 Years |
