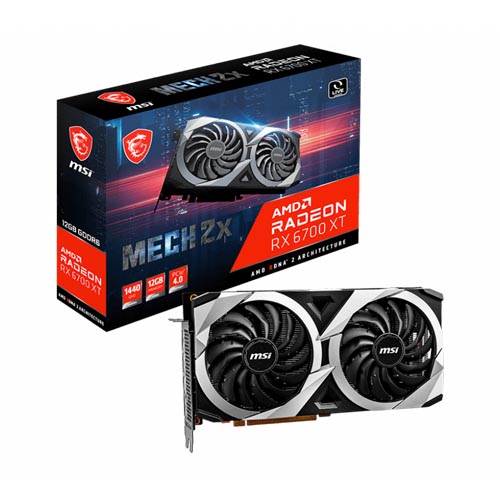

MSI Radeon RX 6700 XT MECH 2X 12G Graphic Card
Overview :
Performance to dominate your game. The AMD Radeon™ RX 6700 XT graphics card, powered by AMD RDNA™ 2 architecture, featuring 40 powerful enhanced Compute Units, the all new AMD Infinity Cache and 12GB of dedicated GDDR6 memory, is engineered to deliver ultra-high frame rates and powerhouse 1440p resolution gaming.
Boost Clock / Memory Speed
- Up to 2581 MHz / 16 Gbps
- 12GB GDDR6
- DisplayPort x 3 (v1.4)
HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1)
Dual Fan Thermal Design
- TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner Overclocking Utility
- Supports multi-GPU setups.
- OC Scanner: An automated function finds the highest stable overclock settings.
- On Screen Display: Provides real-time information of your system’s performance.
- Predator: In-game video recording.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Specification :
| MODEL NAME | RX 6700 XT MECH 2X 12G |
| GRAPHICS PROCESSING UNIT | Radeon™ RX 6700 XT |
| INTERFACE | PCI Express® Gen 4 |
| STREAM PROCESSORS | 2560 Units |
| CORE CLOCKS | Boost: Up to 2581 MHz / Game: Up to 2424 MHz |
| MEMORY SPEED | 16 Gbps |
| MEMORY | 12GB GDDR6 |
| MEMORY BUS | 192-bit |
| OUTPUT | DisplayPort x 3 (v1.4) / HDMI x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 230 W |
| POWER CONNECTORS | 8-pin x 2 |
| RECOMMENDED PSU | 650 W |
| CARD DIMENSION (MM) | 247 x 131 x 51 mm |
| WEIGHT (CARD / PACKAGE) | 921 g / 1393 g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MULTI-GPU TECHNOLOGY | Y |
| AFTERBURNER OC | Y |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
