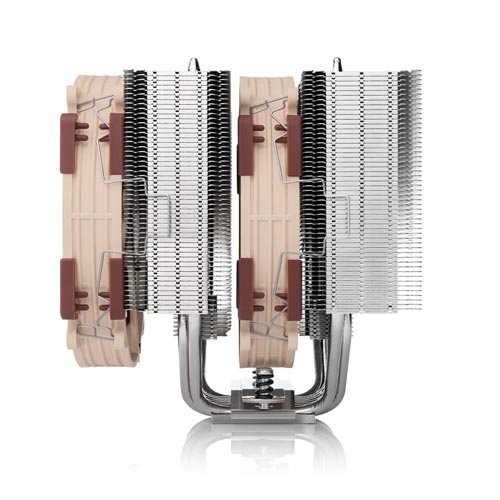

Noctua NH-D15 G2 HBC Next Gen D-Type Premium CPU Cooler
Overview :
The NH-D15 G2 is the further improved second generation of Noctua’s iconic NH-D15. With its state-of-the-art, speed-offset NF-A14x25r G2 PWM fans, eight heatpipes and asymmetrical fin-stacks that have been carefully fine-tuned to work in tandem with the new fans, it achieves even better quiet cooling performance than its award-winning predecessor. As such, the G2 version is a true flagship model that continues the legacy of the original NH-D15 by pushing the boundaries of air cooling and rivalling the efficiency of many all-in-one (AIO) water cooling solutions. Optimised for strongly concave CPUs, the specialised High Base Convexity (HBC) version provides excellent contact quality on Intel LGA1700 processors that are used with full ILM pressure or have become permanently deformed in long-term use. In addition to its further improved performance, the NH-D15 G2 also offers enhanced compatibility thanks to an offset construction that allows it to clear the top PCIe x16 slot on most current motherboards. Last but not least, the G2 version has been upgraded to the Torx®-based SecuFirm2+™ multi-socket mounting system with included NM-SD1 screwdriver as well as to Noctua’s superior NT-H2 thermal compound. In short, the NH-D15 G2 has been further refined in virtually all respects from the heatsink and the fans all the way down to the mounting, thermal paste and accessory package. Topped off with Noctua’s trusted 6-year manufacturer’s warranty, it’s the new number one choice for customers who demand the best of the best in air cooling.
Specification :
| Cooler Specification | |
| Socket compatibility | AMD AM5, AM4 and Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 |
| Height (without fan) | 168 mm |
| Width (without fan) | 150 mm |
| Depth (without fan) | 127 mm |
| Weight (without fan) | 1180 g |
| Height (with fan) | 168 mm |
| Width (with fan) | 150 mm |
| Depth (with fan) | 152 mm |
| Weight (with fan) | 1525 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 228 |
| Fan compatibility | 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25 (optional NA-SFC12 fan clips required) |

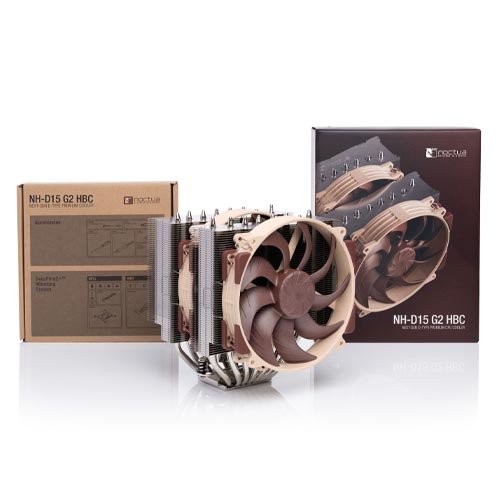

| Scope of delivery | 2x NF-A14x25r G2 PWM premium fan |
| 2x NA-RC16 Low-Noise Adaptor (L.N.A.) | |
| NA-YC1 4-pin PWM splitter cable | |
| NT-H2 high-grade thermal compound | |
| NA-TPG1 thermal paste guard for AM5 | |
| NA-CW1 cleaning wipe | |
| SecuFirm2+™ multi-socket mounting system | |
| 4x NM-ISW1 shim washers for LGA1700 | |
| NM-SD1 Torx® T20 screwdriver | |
| Noctua metal case-badge | |
| Warranty | 6 years |
| FAN Specification | |
| Model | 2x NF-A14x25r G2 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1250 RPM |
| Max. airflow | 155.6 m³/h |
| Max. airflow with L.N.A. | 127.1 m³/h |
| Max. acoustical noise | 24.8 dB(A) |
| Max. acoustical noise with L.N.A. | 19.7 dB(A) |
| Blade geometry | Progressive-Bend impeller |
| Acoustical noise | 24.8 dB(A) |
| Input power (max.) | 2.28 W |
| Voltage range | 12 V |
| MTTF > | 150.000 h |
