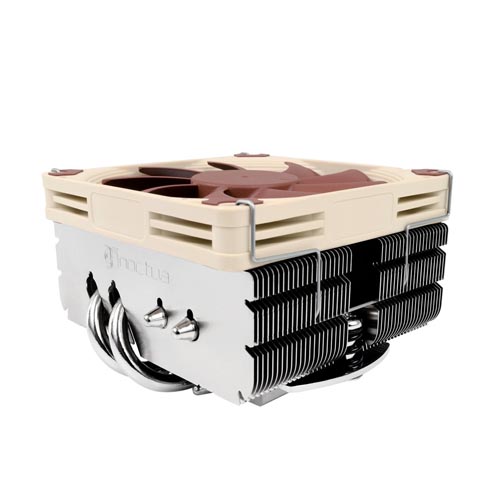

Noctua NH-L9x65 Premium Low-Profile CPU Cooler (65mm, Brown)
Overview :
The NH-L9x65 is a taller, performance-enhanced version of Noctua’s award-winning NH-L9 low-profile coolers. With 65 instead of 37mm height and four instead of two heatpipes, the NH-L9x65 is more powerful than its smaller siblings yet retains their 95x95mm footprint, which guarantees 100% RAM and PCIe compatibility on Intel based ITX mainboards and makes the cooler more convenient to work with as it doesn’t overhang near-socket connectors. Thanks to the highly optimised NF-A9x14 premium fan that supports fully automatic speed control via PWM, the NH-L9x65 runs remarkably quiet. Topped off with the professional SecuFirm2™ multi-socket mounting system for Intel and AMD, Noctua’s renowned NT-H1 thermal compound and 6 years manufacturer’s warranty, the NH-L9x65 fuses everything users have come to expect from Noctua’s larger coolers into a compact premium package for space restricted systems.
The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Specification :
| Cooler Specification | |
| Socket compatibility | Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4 |
| (Current socket compatibility applies to all coolers purchased since Q4 2021. For older coolers, please refer to this chart.) | |
| Height (without fan) | 51 mm |
| Width (without fan) | 95 mm |
| Depth (without fan) 95 mm | |
| Height (with fan) | 65 mm |
| Width (with fan) | 95 mm |
| Depth (with fan) | 95 mm |
| Weight (with fan) | 413 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 67 |
| Max. TDP | see NSPR |
| Fan compatibility | 92x92x14, 92x92x25 |
| Scope of delivery | NF-A9x14 PWM premium fan |
| NA-RC7 Low-Noise Adaptor (L.N.A.) | |
| NT-H1 high-grade thermal compound | |
| SecuFirm2™ Mounting Kit | |
| Noctua Metal Case-Badge | |
| Warranty | 6 Years |
| FAN Specification | |
| Model | Noctua NF-A9x14 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 2500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1800 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 600 RPM |
| Max. airflow | 57,5 m³/h |
| Max. airflow with L.N.A. | 40,8 m³/h |
| Max. acoustical noise | 23,6 dB(A) |
| Max. acoustical noise with L.N.A. | 14,8 dB(A) |
| Input power (max.) | 2,52 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
