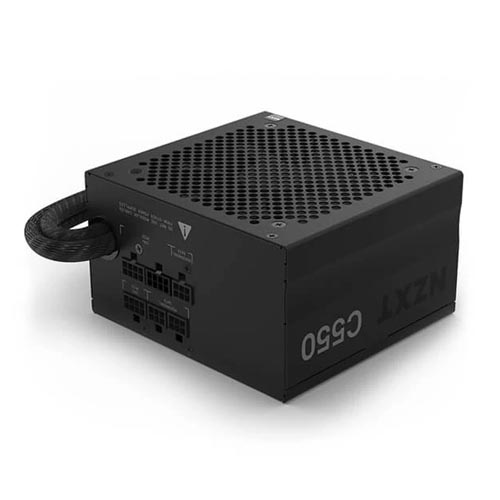

NZXT C550 550W 80 PLUS Bronze Semi-Modular ATX Power Supply PA-PA-5B1BB-EU
Overview :
Power your creative, productive, and entertainment experiences by including the NZXT C550 550W 80 PLUS Bronze Semi-Modular ATX Power Supply in your computer build. Designed primarily for relatively low power systems, this standard semi-modular ATX power supply delivers up to 550W across one 12V rail with a power 80 PLUS Bronze energy efficiency rating of up to 83% at full load. The built-in 120mm, 1200 rpm fluid-dynamic fan helps to maintain optimal temperatures under intense workloads.
80 PLUS Bronze
This 550W PSU features 80 PLUS Bronze certification and is rated to deliver up to 83% energy efficiency rating at 100% load.
Device Support
Cables are included to power up to four PCIe devices, six SATA drives, and three 4-pin peripherals such as fans.
Specification :
| KEY SPECS | |
| Dimensions | W 150mm x L 140mm x H 86mm |
| Material(s) | Steel, PCB and plastic |
| Compliance Standard | ATX12V v2.4 / EPS12V v2.92 |
| AC Input Rating | 100V-240V 8A-4A 50Hz-60Hz |
| GENERAL | |
| Regulations & Certifications (EMC & Safety) | CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE / |
| Hazardous Materials | RoHS & China RoHS |
| DC OUTPUT RATING | |
| Voltage | 3.3V / 5V / 5VSB / 12V / -12V |
| Max Load | 20A / 20A / 2.5A / 45.5A / 0.3A |
| Voltage Regulation | ±5% / ±5% / ±5% / ±5% / ±10% |
| Ripple & Noise | < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p |
| Output Power (watt) | 110 / 110 / 12.5 / 546 / 3.6 |
| Total | 550 |
| FAN SPECS | |
| Dimensions | 120 x 120 x 25 (mm) |
| Speed | 2400 ±10% RPM |
| Airflow | 72.90 CFM |
| Noise | <44 dBA |
| Bearing | FDB (Fluid Dynamic Bearing) |
| ENERGY EFFICIENCY | |
| Rating | 80 Plus Bronze |
| 10% loading | 82% |
| 20% loading | 83% |
| 50% loading | 87% |
| 100% loading | 83% |
| OPERATION | |
| PF Correction | Active@0.96 |
| MTBF | 100,000 hours |
| Operation Temperature | 0 to 40°C |
| OUTPUT CONNECTOR(S) | |
| 24-pin ATX Power | 1 |
| 4 4-pin CPU power | 2 |
| 6 2-pin PCIe power | 4 |
| SATA Power | 6 |
| Peripherals | 3 |
| Warranty | 5 Years |
