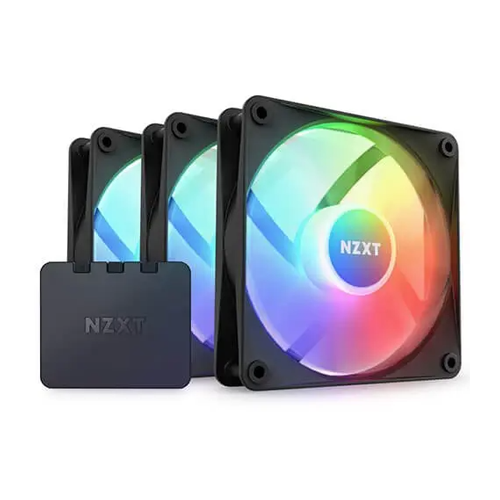

Nzxt F120 Rgb Core 120mm Cabinet Fan With Rgb Controller Matte Black Triple Pack RF-C12TF-B1
Overview :
The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
- Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.
- A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
- Personalized lighting combinations through NZXT CAM software.
- Seamlessly sync it with all your compatible NZXT lighting accessories.
- The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
- Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
- Anti-vibration rubber corners dampen vibration noise at any speed.
Specifications
| Key Specs | |
| Material | Plastic, rubber, PCB |
| Fan Rated Voltage | 12 V DC, 0.2 A, 2.4 W |
| LED Quantity | 8 |
| Bearing | Fluid Dynamic Bearing (FDB) |
| Fan Connector | 4-pin PWM |
| Dimensions | |
| Height | 120mm |
| Width | 120mm |
| Depth | 26mm |
| Cooling | |
| Speed | 500 – 1,800 ± 180RPM |
| Airflow | 78.86 CFM |
| Static Pressure | 2.57 mm H2O |
| Noise | 33.88 dBA |
| Bearing | Fluid Dynamic Bearing |
| Power Consumption | 12 V DC, 0.2 A, 2.4 W |
| Connector | 4-pin PWM |
| Output LED | 8 LEDs |
| Connections & Cable Length (PWN) | 4-pin PWM Fan Cable – 600mm x1 |
| Connections & Cable Length (NZXT) | 4-pin NZXT RGB Cable – 600mm x1 |
| Fan Life | |
| Hours | 60,000 |
| Years | 6 |
| RGB Controller | |
| Dimensions | 63.2 x 53.2 x 12.8mm |
| Weight | 52.8G |
| Material(s) | Plastic, PCB, Magnets |
| Mounting | 2x 3M Dual Lock |
| Connections | 1 x USB 2.0 Header, 1 x SATA |
| Input Connector | 12V DC / 2.6A |
| Output Channel Voltage | 5V DC |
| System Requirement | Requires a USB 2.0 internal connector |
| RGB Lighting Channels | 3 |
| Lighting Channels Support | Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels |
| General | |
| Warranty | 2 Years |
