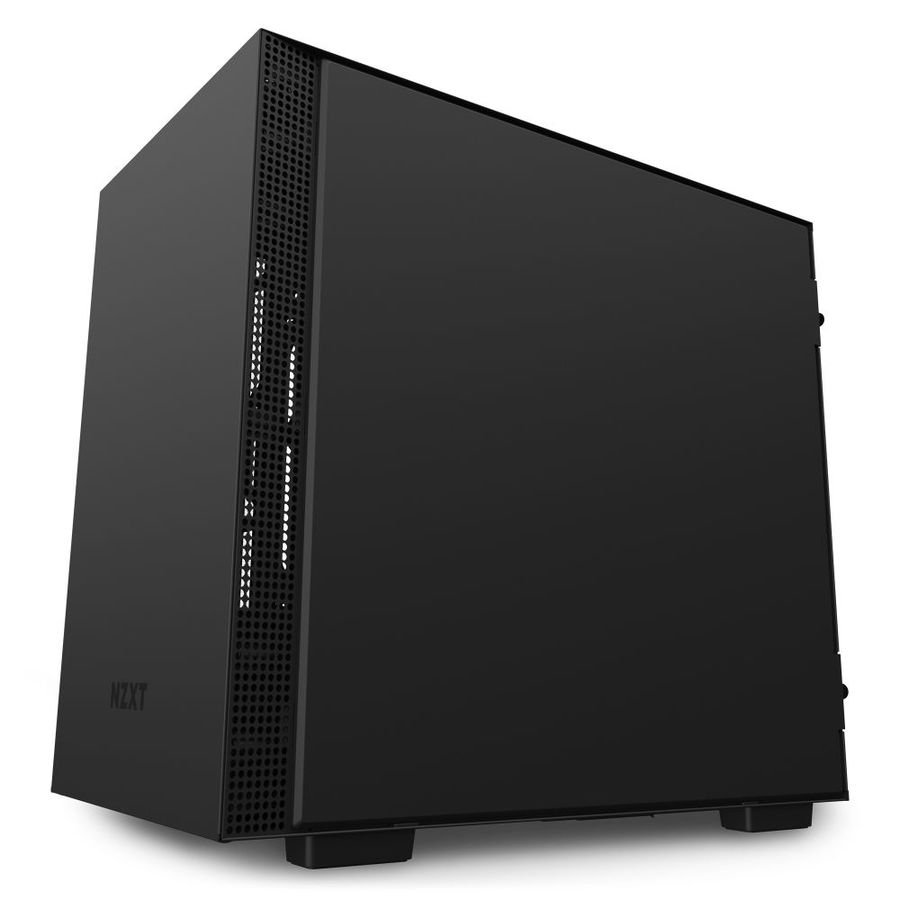

NZXT H Series H210i Matte Black Tempered Glass Mini-ITX Tower Case CA-H210i-B1
Overview :
We’ve made our iconic H Series PC cases even better. Our new lineup still features the elements builders loved in the original H Series, including our patented cable management system, removable fan/radiator mounting brackets, and easy-to-use drive trays, alongside new updates like a front-panel USB-C connector supporting high-speed USB 3.1 Gen 2 devices, a tempered glass side panel that installs with a single thumbscrew, and an upgraded Smart Device V2 on the H210i.
The new Smart Device V2 includes a faster microprocessor for NZXT CAM-powered control of two HUE 2 RGB lighting channels and three fan channels that support either voltage regulated or PWM fans.
With a USB 3.1 Gen2-compatible USB-C connector on the front panel, it’s easier than ever to connect smartphones, high-speed external storage, or the latest peripherals to your PC.

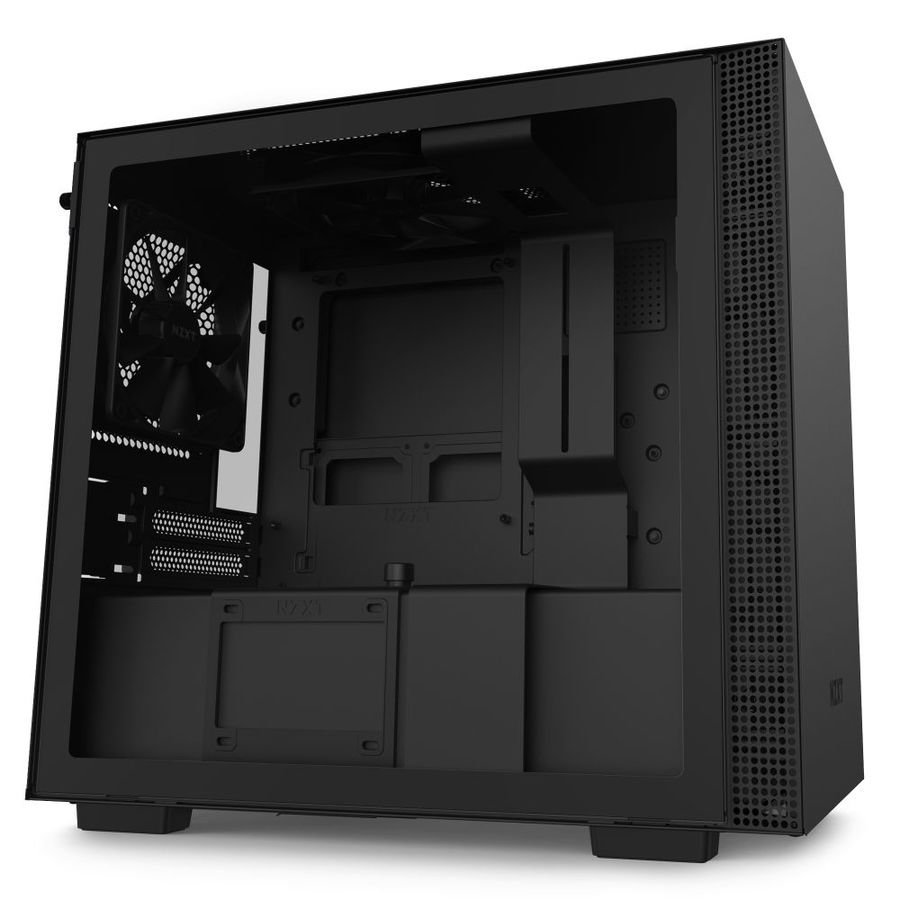

The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC.
Cable management can often take more time than assembly. We designed a cable routing kit with pre-installed channels and straps, for intuitive and easy wiring.
Two Aer F120mm fans* are included for optimal internal airflow and the front panel and PSU intakes include removable filters. Includes a removeable bracket designed for radiators up to 240mm simplifies the installation of either closed-loop or custom-loop water cooling.
*Case version fans and specs vary from retail version
Specification :
| Dimensions | W: 210mm H: 349mm D: 372mm (with feet) |
| Material(s) | SGCC Steel and Tempered Glass |
| Weight | 6 kg |
| Motherboard Support | Mini-ITX |
| Front I/O Ports | 1x USB 3.1 Gen 1 Type-A 1x USB 3.1 Gen 2 Type-C 1x Headset Audio Jack Front I/O internal header 1x USB 3.1 Gen 2 Internal Header 1x USB 3.1 Gen 1 Internal Header 1x USB 2.0 Internal Header 1x HD Audio Header |
| Filters | All Air Intakes |
| Smart Device V2 | 3x Fan channels with Max 10W per channel output* 2x RGB LED port support up to 4x HUE 2 addressable LED strips or 5x Aer RGB or Aer RGB 2 fans Built-in noise detection module *Note: If a splitter is used, fan control is regulated depending on the fan connected to the 4-pin port. Do not use low-noise adapters. |
| LED Strip(s) | 1 integrated addressable LED strip |
| Included Accessories | Installation screws 10 x Cable ties 1x Headset Audio Jack splitter (4 pole to 3 pole) 1x GPU stand |
| Expansion Slots | 2 |
| Drive Bays | 2.5″: 3 1 3.5″: 1 |
| Radiator Support | Front: 2x 120mm with Push or Pull Rear: 1x 120mm |
| Fan Support | Front: 2x 120 / 2x 140mm Top: 1x 120mm (1 AER F120 Case version included) Rear: 1x 120mm (1 AER F120 Case version included) |
| Fan Specs | Aer F120 (Case Version) Speed: 1200 ± 200 RPM Airflow: 50.42 CFM Noise: 28 dBA Bearing: Rifle Bearing |
| Clearance | Cable Management: 16.3mm GPU Clearance: Up to 325mm CPU Cooler: Up to 165mm Front Radiator: 85mm Rear Radiator: 42mm PSU Length: 311mm |
| Warranty | 2 years |
| Model Number | CA-H210i-B1 |
