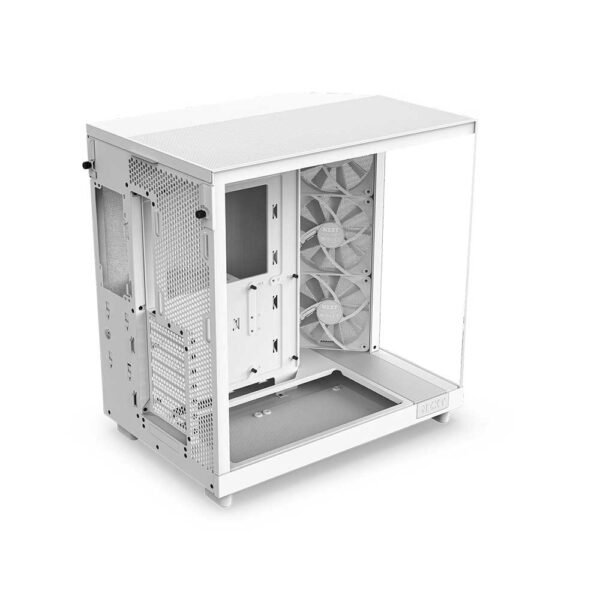

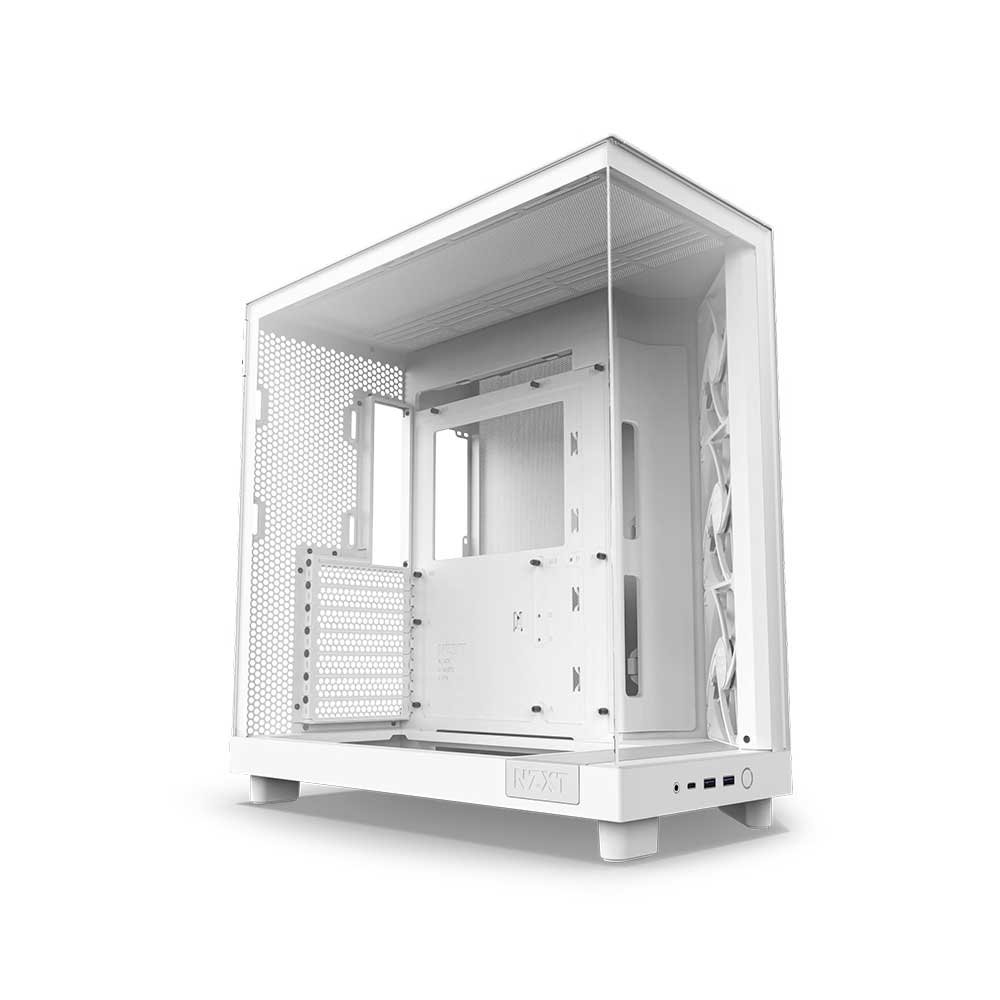

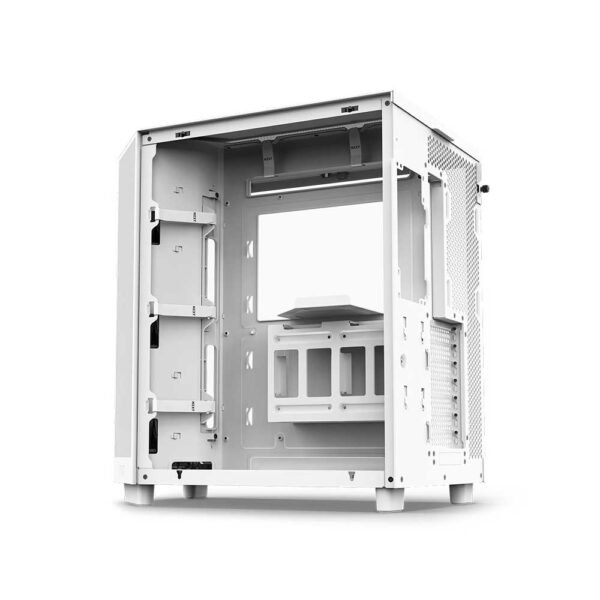

NZXT H6 Flow Compact Dual-Chamber Mid-Tower Airflow Case White CC-H61FW-01
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
Includes three pre-installed 120mm fans positioned at an ideal angle for superb out-of-the-box cooling.
The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
An intuitive cable management system simplifies the build process by using wide channels and straps.
Tool-free access to the top and side panels makes upgrading quick and convenient.
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Panoramic Paneling
Wraparound glass provides an unobstructed view of the inside.
Compact Dual-Chamber
Improves cooling performance and creates an uncrowded aesthetic.
Out-of-the-Box Cooling
3 x 120mm fans are angled for optimal out-of-the-box cooling.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
Cable Management
Easily manage cables with the wide channels and included straps.
Tool-Free Entry
Access the top and side panels without tools for quick upgrades.
Spacious Support
Up to a 360mm radiator in the top and clearance for a 365mm GPU.
Technical Detail
Brand : NZXT
Model : CC-H61FW-01
Technical Spec
Motherboard Support : ATX, Micro-ATX, Mini-ITX
Enclosure Type : Mid-Tower
Case Material : SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass
Drive bays :
2.5″ : 2
3.5″ : 1
Dimension : 435 mm * 287 mm * 415 mm
Weight : 9.4 kg
Fan Support :
Front-Right : 3 x 120 mm
Top : 3 x 120 mm / 2 x 140 mm
Bottom : 2 x 140 mm
Rear : 1 x 120 mm
Filters : High-Performance Mesh
CPU Cooler Height : 163 mm / 6.42 in
GPU Length : 365 mm / 14.37 in
PSU Length : 200 mm / 7.87 in
Cable Management : 91 mm / 3.58 in
Top Radiator : 30 mm / 1.18 in
Radiator Support :
Top : Up to 360 mm
Rear : Up to 120 mm
Front I/O Ports :
USB 3.2 Gen 1 Type-A : 2
USB 3.2 Gen 2 Type-C : 1
Headset Audio Jack : 1
Speed : 1200 ± 240RPM
Airflow : 62.18 CFM
Static : 1.05 mm – H2O
Noise : 25.1 dBA
Fan Connector : 3-pin
Expansion Slots :
Standard : 7
Vertical : 0
