NZXT H6 Flow RBG ATX Mid Tower Cabinet Matte Black CC-H61FB-R1
Experience peak performance and vibrant Nzxt H6 Flow Rgb Cabinet within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow’s panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm RGB fans positioned at an ideal angle for optimal out-of-the-box cooling and vibrant RGB lighting.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.

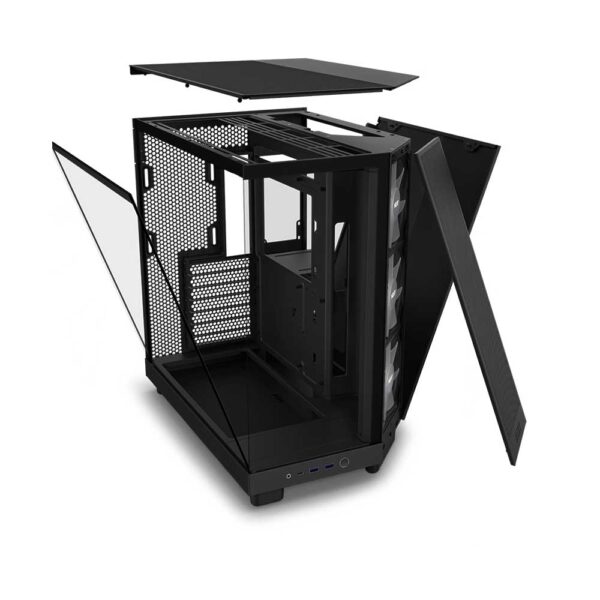

- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance.
Compact Dual-Chamber
Improves cooling performance and creates an uncrowded aesthetic.
Colorful Cooling
3 x 120mm RGB fans are angled for optimal out-of-the-box cooling with vibrant RGB lighting.
High Performance Airflow
Perforation pattern on the panels is optimized for maximum airflow.
Specifications:
| Key Specs | |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass, Dark Tinted Tempered Glass (Black SKU only) |
| Drive Bays | |
| 2.5″ | 2 |
| 3.5″ | 1 |
| Dimensions | |
| Height (with Feet) | 435 mm / 17.13 in |
| Width | 287 mm / 11.3 in |
| Depth | 415 mm / 16.34 in |
| Weight | 9.4Kg |
| Fan Support | |
| Front-Right | 3 x 120 mm (3 x F120 RGB Core included) |
| Top | 23 x 120 mm / 2 x 140 mm |
| Bottom | 22 x 140 mm |
| Rear | 1 x 120mm |
| Filters | High-Performance Mesh |
| Compatibility & Clearance | |
| CPU Cooler Height | 163 mm / 6.42 in |
| GPU Length | 365 mm / 14.37 in |
| PSU Length | 200 mm / 7.87 in |
| Cable Management | 91 mm / 3.58 in |
| Top Radiator | 30 mm / 1.18 in |
| Radiator Support | |
| Top | Up to 360mm |
| Rear | Up to 120mm |
| Fan Specs | |
| Model | F120 RGB Core Fan (Case Version) |
| Speed | 1300 ± 130 RPM |
| Airflow | 55.17 CFM |
| Static | 1.27 mm – H₂O |
| Noise | 26.1 dBA |
| Fan Controller | 3 – Pin |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Warranty | 2 Years |
