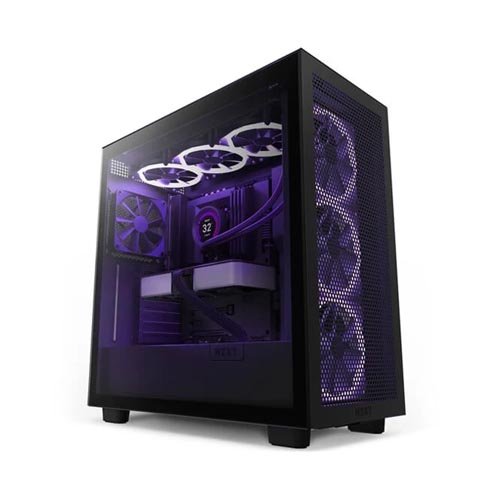

Nzxt H7 Flow (E-ATX) Mid Tower Cabinet (Black) CM-H71FB-01
Overview :
This mid-tower case is ready to bring the cool. Featuring a perforated front and top panel, alongside widened channels, hooks, straps, and toolless entry, this sleek case will keep any build cool and comfortable while offering plenty of space.
- Perforated front & top panels enable maximum thermal performance
- Intuitive cable management system with wide channels, hooks, & straps
- Tool-less access to front & side panels
- Front & top support radiators up to 360mm
- Includes two F Series Quiet 120mm Fans
- Supports vertical GPU mounting (Sold Separately)
- Three color options (Matte Black, Matte White, White & Black)
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port
Specification :
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm) |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Drive Bays | |
| 2.5″ | 4 2 |
| 3.5″ | 2 |
| Dimensions | |
| Height | 505mm (With Feet) |
| Width | 230mm |
| Depth | 480mm |
| Weight | 10.05 kg |
| Fan Support | |
| Front | 3 x 120mm / 3 x 140mm |
| Top | 3 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm / 1 x 140mm |
| Filters | All Air Intakes |
| Model Number | CM-H71FB-01 (Black) |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 185mm |
| Max GPU Clearance | Up to 400mm |
| Front Radiator Clearance | 60mm |
| Top Radiator Clearance | 30mm |
| Cable Management | 18-22mm |
| Radiator Support | |
| Front | Up to 360mm with Push/Pull |
| Top | Up to 360mm |
| Rear | Up to 140mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240RPM |
| Airflow | 62.18 CFM |
| Static | 1.05 mm – H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Warranty | 2 Years |
