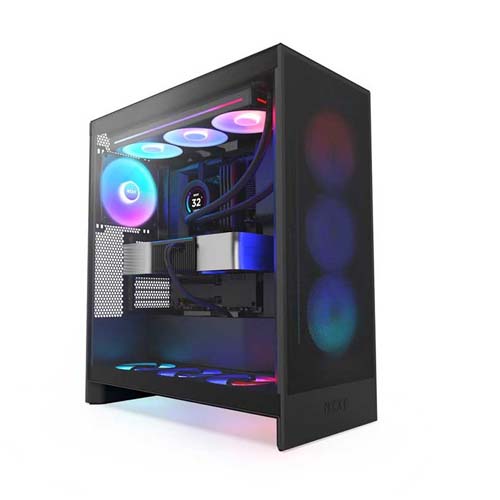

Nzxt H7 Flow RGB Atx Mid Tower Cabinet Matte Black With RGB Fans CM-H72FB-R1
Overview
The Nzxt H7 Flow Rgb revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Specifications
| Motherboard Support | E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Dimensions | |
| Height (With Feet) | 544mm |
| Width | 244mm |
| Depth | 468mm |
| Weight | 11.13 Kg |
| Compatiblity & Clearance | |
| CPU Cooler Height | Up to 185mm |
| GPU Length | Up to 410mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 34.5 mm |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 57 mm |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5″ | 2 2 |
| 3.5″ | 2 |
| Fan Support | |
| Front | 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included) |
| Top | 3 x 120 mm / 2 x 140 mm |
| Bottom | 3 x 120 mm |
| Rear | 1 x 120 mm / 1 x 140 mm |
| Filters | High-Performance Mesh |
| Radiator Support | |
| Front | Up to 420 mm |
| Top Rear | Up to 360mm |
| Rear | Up to 140mm |
| Fan Specs | |
| Model | F360 RGB Core Fan (Case Version) |
| Speed | 1,700 ± 200 RPM |
| Airflow | 50.1 CFM |
| Static | 1.27 mm-H₂O |
| Noise | 23.3 dBA |
| Fan Connector | 3-pin |
| Warranty | 2 Years |
