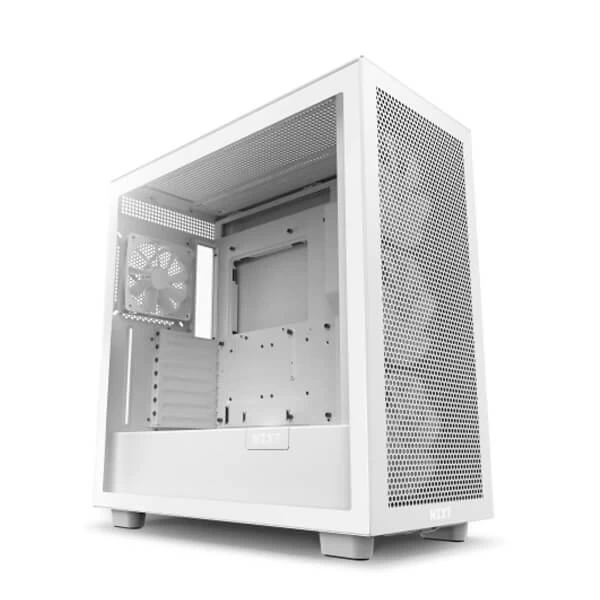

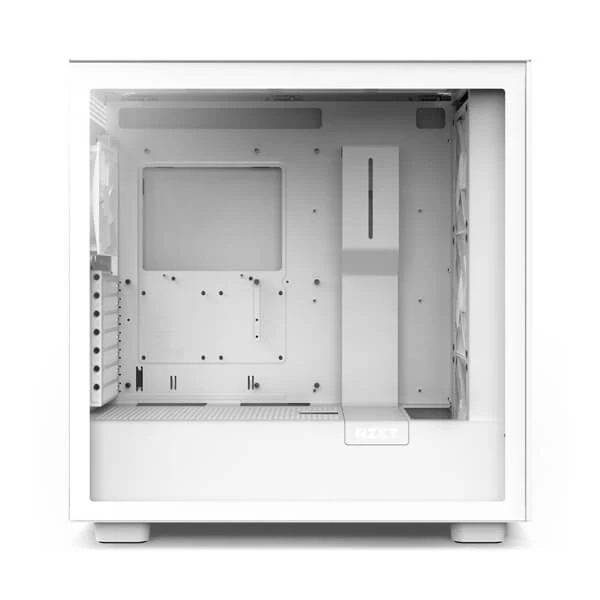

NZXT H7 Flow RGB (ATX) Mid Tower Cabinet White CM-H71FW-R1
NZXT H7 Flow RGB Cabinet comes with white color design. It includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan. Front & top support radiators up to 360mm Connects multiple F140 RGB Core fans to 5V ARGB header on the mothe
Features:
The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.
Includes three pre-installed F140 RGB Core fans & one F120Q Quiet Airflow fan
Perforated front & top panels enable maximum thermal performance
Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels (tinted panels on black variant only)
Front & top support radiators up to 360mm
Connects multiple F140 RGB Core fans to 5V ARGB header on the motherboard
Supports vertical GPU mounting (Sold Separately)
Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
| Model Number | CM-H71FW-R1 |
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type | Mid-Tower |
| Case Material (Black) | SGCC Steel, Dark Tinted Tempered Glass |
| Fan Support | |
| Front | 3 x 120mm / 3 x 140mm (3 x F Series RGB Core 140mm included) |
| Top | 3 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm / 1 x 140mm (1 x F Series Quiet 140mm (Case Version) included) |
| Filters | All Air Intakes |
| Dimensions | |
| Height (With Feet) | 505mm |
| Height (Without Feet) | 480mm |
| Width | 230mm |
| Depth | 480mm |
| Weight | 10.57kg |
| Radiator Support | |
| Front | Up to 360mm with Push/Pull |
| Top | Up to 360mm |
| Rear | Up to 140mm |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 185mm |
| Max GPU Clearance | Up to 400mm |
| Front Radiator Clearance | 60mm |
| Cable Management | 18-22mm |
| Top Radiator Clearance | 30mm |
| PSU Clearance | Up to 200mm |
| Fan Specs | |
| Model | F140 RGB Core Fan (Case Version) |
| Speed | 1200 ± 120 RPM |
| Airflow | 61.74 CFM |
| Static Pressure | 2.06mm-H2O |
| Noise | 29.05 dBA |
| Fan Connector | 3-pin |
| Front I/O Ports | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240RPM |
| Airflow | 62.18 CFM |
| Static Pressure | 1.05 mm-H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5″ | 4 2 |
| 3.5″ | 2 |
| Warranty | 2 Years |
