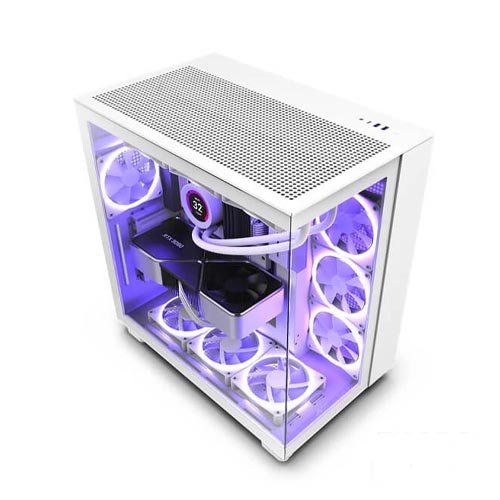

NZXT H9 Flow (ATX) Mid Tower Cabinet (White) CM-H91FW-01
Overview :
The H9 Flow is designed to cool off powerful GPUs with its expansive thermal capabilities, featuring the capacity for ten fans and numerous 360mm radiator mounting options and the perforated top panel takes cooling even further.
- Unique uninterrupted glass panel for a clear view of the interior
- Intuitive cable management and dual chamber design
- Room for ten fans or three 360mm Radiators
- Perforated top panel for enhanced cooling
- Direct airflow to the GPU for handling high-powered components
- Enhanced experience with other products from the NZXT ecosystem
- Includes four F Series 120mm Quiet Airflow fans
Specification :
| Key Specs | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Tempered Glass |
| Fan Support | |
| Side | 3 x 120mm |
| Top | 3 x 120mm / 2 x 140mm |
| Bottom | 3 x 120mm / 2 x 140mm |
| Rear | 1 x 120mm |
| Filters | All Air Intakes |
| Dimensions | |
| Height | 495mm (With Feet) |
| Width | 290mm |
| Depth | 466mm |
| Weight | 12.1 kg |
| Radiator Support | |
| Side | Up to 360mm with Push/Pull |
| Top | Up to 360mm |
| Bottom | Up to 360mm |
| Rear | Up to 120mm |
| Compatibility & Clearance | |
| Max CPU Cooler Clearance | Up to 165mm |
| Max GPU Clearance | Up to 435mm |
| PSU Clearance | 200mm |
| Cable Management | 91mm |
| Fan Specs | |
| Model | F120Q (Case Version) |
| Speed | 1200 ± 240RPM |
| Airflow | 62.18 CFM |
| Static | 1.05 mm – H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5″ | 4 2 |
| 3.5″ | 2 |
| Warranty | 2 Years |
