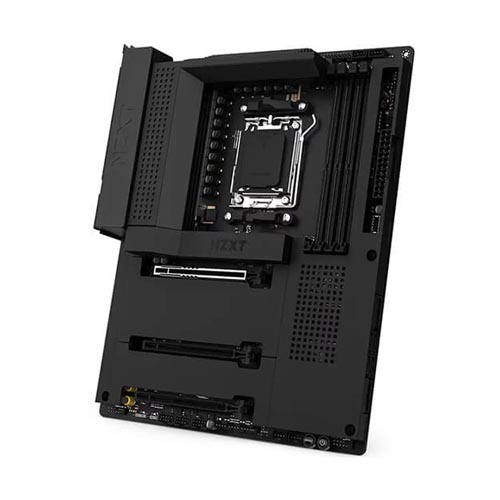

NZXT N7 B650E WiFi AM5 ATX Motherboard (Black) N7-B65XT-B1
Overview :
This motherboard enables a visually seamless backdrop for any build with all the features of the reliable AMD B650E chipset.
- Seamless cover with integrated heat spreader
- Digital RGB lighting control through CAM
- Digital fan control for convenient fan profiles with seven independent fan channels
- Integrated rear I/O shield and efficient layout
- 16 2 1 Power phase design with 90A Smart Power Stage(SPS)
Specification :
| Model | N7-B65XT-B1 |
| Color | Black |
| Chipset | AMD:B650 |
| Memory | DIMM Slots:4 |
| Max Memory Support:128GB | |
| Memory Architecture:Dual-Channel | |
| OC Frequency:DDR5 Non-ECC, Un-buffered Memory up to 6000 (OC). | |
| Extreme Memory Profile (XMP):Supported | |
| EXTended Profiles for Overclocking (EXPO):Supported | |
| CPU | AMD Socket AM5 Ryzen™ 7000 Series Processors:Supported |
| Expansion Slots | PCIe 5.0 ×16 slot (PCIEX16_1), supports ×16 mode:1 (Supports NVMe SSD as boot disks) |
| PCIe 4.0 ×16 slots (PCIEX16_2 and PCIEX16_3), support ×2 mode:2 (Supports NVMe SSD as boot disks) | |
| M.2 Socket (Key E), supports Type 2230 Wi-Fi/BT PCIe Wi-Fi module:1 | |
| Integrated Graphics | Integrated AMD RDNA™ 2 graphics:Supported |
| HDMI 2.1 TMD Compatible:1 | |
| HDR:Supported | |
| HDCP 2.3:max. resolution up to 4K 60Hz | |
| Storage | M.2_1, Type 2242/2260/2280 (PCIe 5.0 ×4 mode):1 |
| M.2_2, Type 2242/2260/2280 (PCIe 4.0 ×4 mode):1 | |
| M.2_3, Type 2242/2260/2280 (PCIe 4.0 ×2 mode):1 | |
| SATA 6Gb/s ports:4 | |
| RAID 0/1/10 for SATA storage devices:Supported | |
| RAID 0/1/10 for M.2 NVMe storage devices:Supported | |
| NVMe SSD as boot disks:Supported | |
| LAN | Realtek®:RTL8125BG 2.5G LAN |
| Wireless | 802.11ax Wi-Fi 6E Module:Supported |
| Bluetooth:V5.2 | |
| Audio | Realtek®:ALC1220 Codec |
| Rear I/O | Wireless antenna SMA connectors:2 |
| HDMI™ port:1 | |
| USB 2.0:2 | |
| USB 3.2 Gen 2 Type-C port:1 | |
| USB 3.2 Gen 2 ports:2 | |
| USB 3.2 Gen 1 ports:4 | |
| Clear CMOS button:1 | |
| BIOS Flashback button:1 | |
| LAN (RJ45) port:1 | |
| Audio jacks:5 | |
| Optical S/PDIF Out port:1 | |
| Internal I/O | 24-pin ATX power connector:1 |
| 8 4-pin ATX 12V power connector:1 | |
| 4-pin CPU_FAN connector:1 | |
| 4-pin AIO_PUMP connector:1 | |
| 4-pin SYS_FAN connectors:5 | |
| NZXT RGB LED connectors:4 | |
| 5V ARGB LED connector:2 | |
| USB 2.0 header (Up to 6 USB 2.0 ports):3 | |
| USB 3.2 Gen1 header (Up to 4 USB 3.2 Gen 1 ports):2 | |
| USB 3.2 Gen2 front panel header (For USB Type-C):1 | |
| Front panel audio connector:1 | |
| Power button:1 | |
| Reset button:1 | |
| POST LEDs:4 | |
| General | System Requirements:NZXT CAM software requires Microsoft Windows® 11/10 operating system. |
| Form Factor | ATX |
| Certifications | FCC, CE, WHQL, ErP/EuP Ready |
| Warranty | 3 Years |
