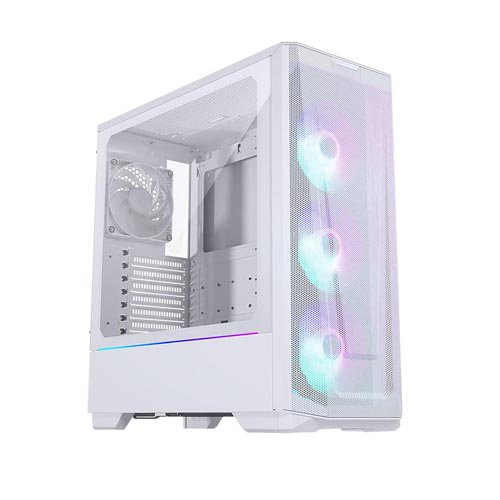

Phanteks Eclipse G360A Matte White Steel Tempered Glass ATX Mid Tower Cabinet PH-EC360ATG_DMW02
Overview :
The metal front panel features Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with dust filtration, all-in-one. With its high-performance design, the G360A is ready for powerful gaming setups, offering 360 radiator options in the top and front while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Like all Phanteks lighting products, the integrated D-RGB lighting is simple to control with pre-programmed lighting effects and requires no software. Optionally, the D-RGB controller can be synchronized with compatible motherboards and expanded with more D-RGB products.
Phanteks Eclipse G360A feature highlights:
High performance design
Equipped with the Ultra-fine Mesh front panel, the G360 was designed to meet next gen cooling demands. It brings high-end cooling capabilities with 360 radiator support in the front and top of the chassis, 7 fan locations and plenty of clearance for large GPUs.
Great value yet capable
The Eclipse Series from Phanteks is known for offering a great value across its lineup. The G360A brings unique capabilities and features to house even the highest end gaming systems in a compact ATX mid-tower chassis.
Integrated lighting
Equipped with its own Digital-RGB controller, the Eclipse G360A makes lighting easy. It’s software-free with manual control and programmed with tasteful lighting effects out of the box. Three Digital-RGB 120mm fans are pre-installed and a LED strip is integrated along the tempered glass panel. Like all of Phanteks’ lighting products, the Digital-RGB controller can be expanded with more lighting products and/or synced with motherboards to allow for software control.
The Eclipse G360A is ready for next-gen performance with incredible value.
Specification :
| Model | |
| Brand | Phanteks |
| Series | Eclipse G360A |
| Model | PH-EC360ATG_DMW02 |
| Details | |
| Type | ATX Mid Tower |
| Color | White |
| Case Material | Steel / Tempered Glass |
| Motherboard Compatibility | Micro ATX / ATX / Mini ITX / E-ATX (up to 280mm wide) |
| Side Panel Window | Yes |
| LED | DRGB |
| Expansion | |
| Internal 3.5″ Drive Bays | 2 (2x included) |
| Internal 2.5″ Drive Bays | 3 (2x included) |
| Expansion Slots | 7 |
| Front Panel Ports | |
| Front Ports | 2 x USB 3.0 / Audio |
| Cooling System | |
| Fan Options | Front: 3 x 120mm (3 x 120mm D-RGB fans included) / 2 x 140mm fan |
| Top: 3 x 120mm / 2 x 140mm fan | |
| Rear: 1 x 120mm fan | |
| Radiator Options | Front: 360mm / 280mm |
| Top: 360mm | |
| Rear: 120mm | |
| Dimensions & Weight | |
| Max GPU Length | 400 mm |
| Max CPU Cooler Height | 162 mm |
| Max PSU Length | 220 mm |
| Dimensions (H x W x D) | 18.30″ x 7.87″ x 17.90″ |
| Weight | 14.35 lbs. |
| Additional Info | |
| Features | High performance front panel with Ultra-fine Performance Mesh that combines high airflow performance and excellent dust filtrations. |
| Integrated D-RGB lighting that is easy to control and can be expanded and/or synced to a D-RGB equipped motherboard. | |
| Three 120mm D-RGB fans and an integrated D-RGB LED strip is included. | |
| Ready for high-end gaming systems with 360 radiator cooling support in front or top, full-length GPUs and vertical GPU ready with the optional Vertical GPU Bracket. | |
| Easily accessible front I/O featuring 2x USB 3.0, Microphone/Headphone Combo, Power button, and D-RGB Color and Mode buttons. | |
| Storage support with 3x dedicated SSD locations (2 included) and 2x toolless HDD brackets. |
