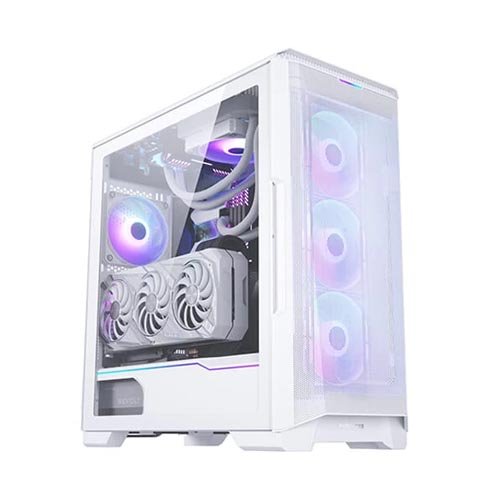

Phanteks Eclipse P600S (E-ATX) Mid Tower Cabinet (Matte White) PH-EC6OOPSTG-DMW01
Overview :
The Eclipse P600S is designed to bring you the best of two worlds. A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode. Designed with effective soundproofing panels and Phanteks’ new high airflow fabric, the Eclipse P600S offers the full potential of two opposites, minimum noise and maximum airflow
Specification :
| Model | PH-EC600PSTG_BK01 |
| Dimension | 240 mm x 520 mm x 510 mm (W x H x D) 9.5 in x 20.5 in x 20.1 in |
| Form Factor | Midtower |
| Materials | Powder coated steel chassis, Tempered glass side panel, Sound Dampening Panels |
| Motherboard | ATX, Micro ATX, Mini ITX,E-ATX *(up to 280mm wide) |
| Front I/O | 1x USB 3.1 GEN 2 Type-C, 2x USB 3.0, Power button, Microphone, Headphone, Reset |
| Side Window | Tempered Glass |
| PCI Slots | 7 |
| Internal 3.5” | 10 (4 Included) |
| Internal 2.5” | 3 (3 Included) |
| Fan Support | Front – 3 x 120mm, 3 x 140mm (3 installed) |
| Top – 3 x 120mm, 2 x 140mm | |
| Rear – 1 x 120mm, 1 x 120mm | |
| Radiator Support | Front – Up to 360mm, Up to 420mm |
| Top – Up to 360mm, Up to 280mm | |
| Rear – 120mm, 120mm | |
| CPU Cooler Clearance | 190mm (7.5 in) |
| GPU Clearance | 435mm (17.2 in) |
| With 3.5” HDD bracket installed | 294mm (11.6 in) |
| Front Radiator Fan (thickness) | 95mm (3.7 in) |
| Top radiator Fan (thickness) | 65mm (2.5 in) |
| Motherboard | E-ATX up to 280mm wide |
| Warranty | 5 Years |
