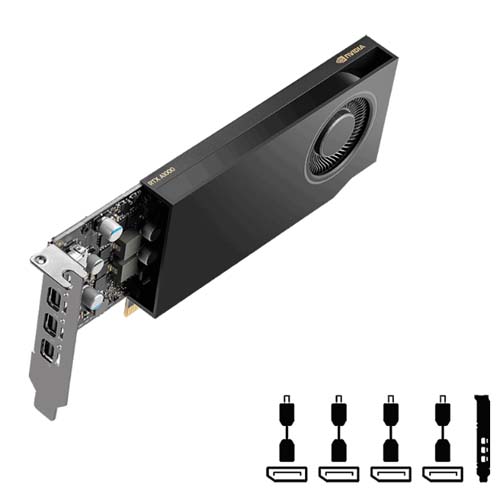

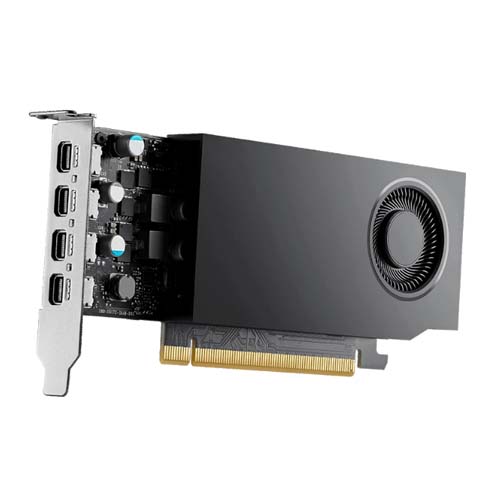

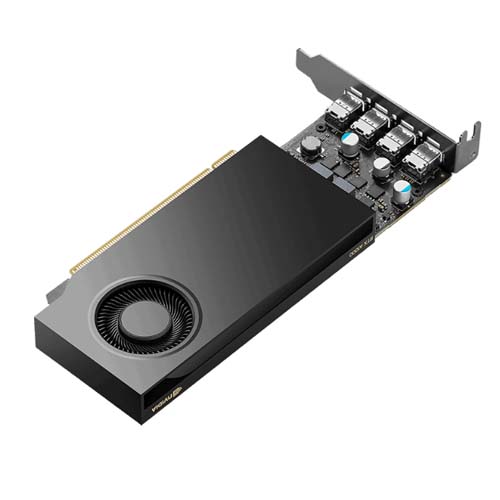

PNY Nvidia Quadro RTX A1000 8GB GDDR6 low profile Graphics Card VCNRTXA1000-SB
Overview :
Performance for endless possibilities.
Small-form-factor computing solutions are becoming more common as professionals look to minimize their desktop workstation footprint—without compromising performance. Today’s professional workflows require small-form-factor workstations to provide full-size features and performance in a compact package.
Built on NVIDIA Ampere GPU architecture, the NVIDIA RTX™ A1000 GPU is a powerful, low-profile solution that delivers the performance and capabilities required by demanding professional applications. With 2,304 CUDA® Cores, 18 RT Cores, 72 Tensor Cores, 8GB of GDDR6 memory, and the ability to drive up to four 5K displays, the NVIDIA RTX A1000 is ready to take your work to the next level.
Specifications
| Device Type | Graphics card – low profile |
| Bus Type | PCI Express 4.0 x8 |
| Graphics Engine | NVIDIA RTX A1000 |
| CUDA Cores | 2304 |
| VR Ready | Yes |
| Max Monitors Supported | 4 |
| Interfaces Details | 4 x Mini DisplayPort (version 1.4a) |
| API Supported | DirectCompute, DirectX 12, OpenGL 4.6, OpenCL 3.0, CUDA 11.6, Vulkan 1.3, Shader Model 6.6 |
| Features | Nvidia CUDA technology, NVIDIA Mosaic, DisplayPort with Audio, NVIDIA Ampere GPU technology, NVIDIA RTX IO, 2nd gen Ray Tracing Cores, 3rd gen Tensor Cores, Active Thermal Solution, AV1 decode support, single slot form factor, 18 NVIDIA RT Cores, 72 NVIDIA Tensor Cores, 13.2 Tflops RT Core performance, 53.8 Tflops tensor performance, 6.7 Tflops peak single-precision floating point performance |
| Memory | |
| Size | 8 GB |
| Technology | GDDR6 SDRAM |
| Bus Width | 128-bit |
| Bandwidth | 192 GBps |
| System Requirements | |
| OS Required | Oracle Solaris 11, Red Hat Enterprise Linux 7.x, Windows 10 64-bit Edition, Ubuntu 18.04, openSUSE 15, Linux Fedora 31, SUSE Linux Enterprise Desktop 15.x, FreeBSD 11.x, Windows 11 |
| Miscellaneous | |
| Power Consumption Operational | 50 Watt |
| Included Accessories | Graphics card support bracket |
| Software Included | NVIDIA RTX Desktop Manager, NVIDIA RTX Experience |
| Compliant Standards | RoHS, DisplayPort 1.4a |
| Depth | 16.3 cm |
| Height | 6.9 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – 3 years |
