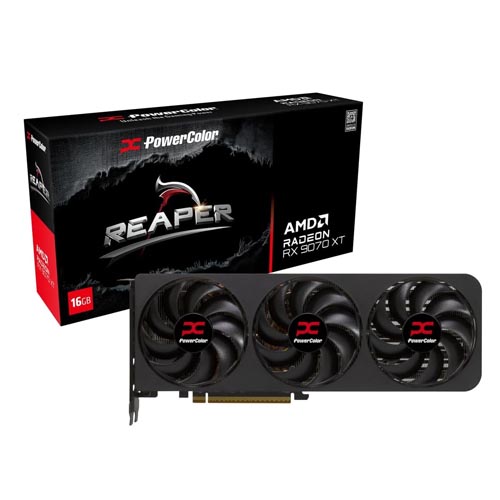

PowerColor Reaper AMD Radeon RX 9070 XT 16GB GDDR6 Graphic Card RX9070XT 16G-A
Overview :
Relentless by Design: The Reaper Series
The PowerColor Reaper Series is built for gamers who demand reliable performance and unwavering endurance. With its sturdy cooling architecture and precision engineering, the Reaper is designed to handle the rigors of intense gaming sessions without compromise. Crafted with a singular focus on delivering consistent results, it stands as a steadfast ally for those ready to conquer every challenge. The Reaper Series is gaming, pure and simple—nothing more, nothing less.
Master the Game with Reaper Series
The PowerColor Reaper Series is designed to deliver reliable, consistent performance for gamers. Featuring high-quality Japanese dual ball bearings and high-efficiency ring blade fans, its robust triple-fan design ensures optimal airflow and durability. The copper base provides direct contact with the GPU and VRAM, maximizing cooling efficiency during demanding gameplay. The Reaper Series is built for those who value enduring performance in every battle.
High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Intelligent Fan Controller
Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.
High-Efficiency Ring Blade Fans
Designed for passionate gamers, delivering the coolest experience. Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels. It enhances air pressure and airflow, achieving optimal cooling performance.
Copper Base Direct Touch
A smooth copper base directly contacts the GPU to enhance exceptional heat transfer, and improves heat dissipation from the VRAMs to keep the card in the optimum cooling condition.
High-Thermal Conductivity Honeywell PTM7950
The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Specification :
| Graphics Engine | AMD Radeon™ RX 9070 XT |
| Model Name | RX9070XT 16G-A |
| Series | Reaper |
| Stream Processor | 4096 Units |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20.0 Gbps |
| Memory Interface | 256-bit |
| Engine Clock(STD/Silent) | up to 2400MHz(Game) |
| up to 2970MHz(Boost) | |
| Bus Standard | PCIE 5.0 x16 |
| Standard Display Connectors | 1 x HDMI 2.1b，3 x DisplayPort 2.1a |
| Feature Support | |
| DirectX® Support | 12 |
| OpenGL | 4.6 |
| AMD Eyefinity Technology | Support |
| AMD Stream Technology | Support |
| AMD Smart Access Memory | Support |
| Maximum Resolution | |
| DisplayPort | 7680×4320 |
| HDMI | 7680×4320 |
| Power Specs + Board Dimensions | |
| Board Dimensions | 289mm*111mm*41mm |
| 304mm*127mm*42mm(with bracket) | |
| Slot | 2 |
| Minimum System Power requirement (W) | 750W |
| Extension Power Connector | Two 8-pin PCI Express Power connectors |
